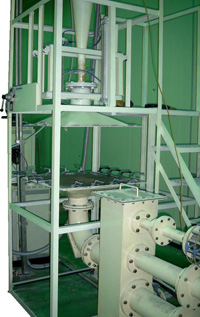

JFM DER-010 UNIVERSAL AIR FILTER TESTER

-POWER: AC 220V, 3Φ 7.5kw

-TYPE:

① 0-2 ㎥/min 80A

② 2-5 ㎥/min 125A

③ 5-8 ㎥/min 150A

-FLOW CONTROL VALVE: BUTTERFLY VALVE 80A, 125A, 150A

-TURBO BLOWER:

+STATIC PRESSURE : 700mmAq

+FLOW : 30 ㎥/min(MAX)

+MOTOR : 7.5kw (10HP)

-PRESSURE MEASURING SENSOR:

+CAPACITY : 1000mmAq

+Model : VPMH

-TEMP SENSOR: INDISATOR

=FLOW MEASURING SENSOR:

+MEASURE CAPA:

① 0-2 ㎥/min

② 2-5 ㎥/min

③ 5-10 ㎥/min

+SENSOR : CERAMIC DHD-8020

HOUSING : SUS 304 KOREA

-FLOW INDICATOR:

+MODEL : SH-3110

+BCD OUT TYPE

-DUST FEEDER SYSTEM (1SET):

+INVERTER CONTROL

+40 g/MIN

+THE KOREA

-CONTROL BOX:

+POWER S/W

+DIGITAL FLOW INDICATOR

+DIGITAL PRESSURE INDICATOR

+MOTOR CONTROL PART INVERTER J300-0751F

+DIGITAL V,A METER

+DUST FEEDER S/W

+DIFFERENTAL PRESSURE INDICATOR SH-3110 (1SET)

-MAIN FLOW SYSTEM:

+MATERAL : STEEL PIPE

+80A, 125A, 150A

+FLANGE TYPE

+TURBO BLOWER PART

+FLOW MEASURE PART

+SAMPLE CONTACT PART

+CONTROL PART

+TEMP INDICATOR PART

-TEST AREA:

APP 6 ×3M

* AIR DRYER separate
