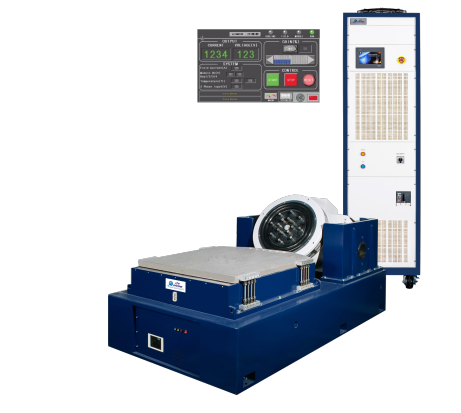

SYSTEM MODEL: IPA30L / M232A
Sine Force: 2,000 kgf
Random Force: 2,000 kgf
Shock Force (½ Sine): 4,000 kgf
Usable Frequency Range: DC to 3,000 Hz
Continuous / Shock: 51 mm / 51 mm
Max. Velocity (Sine): 2.0 m/s
Max. Acceleration (Sine): 981 m/s²
SHAKER UNIT: M232A
Armature Diameter: 320 mm
Effective Moving Element Mass: 20 kg
Load Attachment Point: 16 stainless steel inserts
Inserts Size (Standard): M10
Grid Pattern (Diameter,Circle): 8 on Ø 120mm;8 on Ø 250 mm
Nominal, Bare Table (2): 2,500 Hz
Max. Static Payload: 300 kg
Natural Frequency: <5 Hz
Stray Flux Density (3): Less than 10 gauss
Dimensions (Uncrated): 1189 x 780 x 1020 mm
Weight (Uncrated): 1,650 kg
AMPLIFIER UNIT: IPA30L
Amplifier Output: 30 kVA
Total Harmonic Distortion (At Rated Output): From 5 Hz to 2,500 Hz less than 1.2%; from 2,500 Hz to 3,500 Hz less than 1.5% with resistive load
Amplifier Frequency Response (4): From 5 Hz to 10 Hz: ±6 dB; from 10 Hz to 5,000 Hz: ±3 dB
Switching Frequency: 150 kHz
Max. Output Voltage: 120 Vrms
Max. Output Current Per
Module (Continuous / Transient): 250 Arms / 750 Arms
Amplifier Efficiency: >90%
Dimensions (Uncrated) (L x W x H): 550 x 800 x 1850 mm
Weight (Uncrated): 480 kg
BLOWER UNIT: HP-3A
Power Output: 7.5 kW
Air Flow:0.467 m³/s
Air Pressure:0.057 kgf / cm²
Dimensions (Uncrated) (L x W x H): 945 x 693 x 1466 mm
Weight (Uncrated):175 kg
