Test parameters: 10ch AC resistance, 10ch DC voltage
Basic accuracy: Resistance: 0.5%, Voltage: 0.05%
Measuring range:
Resistance: 0.01mΩ~33.000KΩ,
Voltage: 0.0001V~60.000VDC
Signal source: AC 1kHz, Test current <150mA
Range: 3 ranges, automatic and manual
Test speed: Fast: 10 ch/1s, Middle: 10 ch/2s, Slow: 10 ch/3s
Display result: Direct reading, ΔABS, Δ% sorting result
Max. reading: Resistance: 3,0000; Voltage: 60,000
Correction: Full range short circuit clear zero
Comparators: RHI/RNG/RLO output, VHI/VNG/VLO output absolute value, Tolerance ±TOL sorting, % tolerance %TOL sorting, Order comparison sorting
Trigger: Internal trigger, manual trigger, external trigger, and remote trigger
Interface: RS-232C, Handler (PLC)
Power requirement: Voltage: 195VAC～245VAC, Frequency: 50Hz, Power: Max. 15VA
Size and Weight:
Dimension (mm): 264 (W) x 107 (H) x 350 (D)
Weight: 4kgs
Accessories: Kelvin test line, RS232 cable
Optional accessories: Test probe, test meter bar
Others: Test line damage detection, true color 4.3 inch TFT-LCD display, keyboard lock, data retention function, and U disk data recording

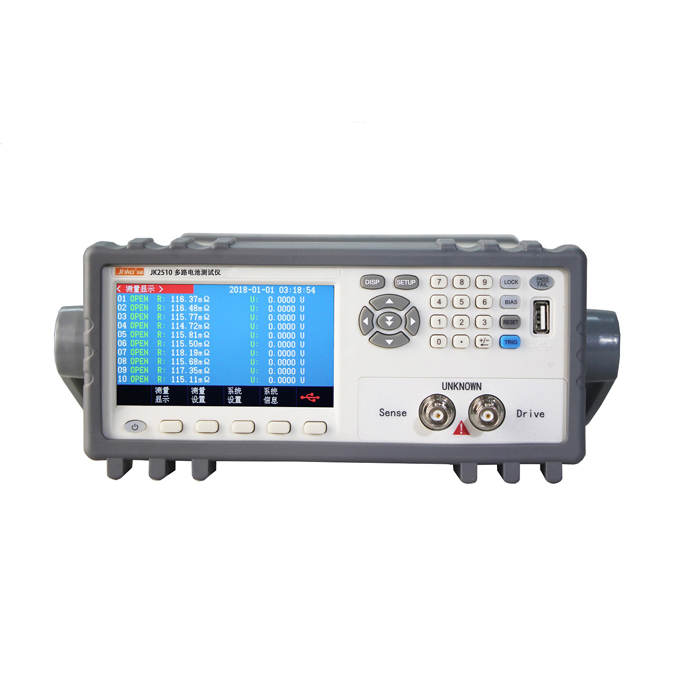

JK2510 multi-channel battery tester is a newly designed multi-channel battery tester with high accuracy and high stability. It can quickly complete the separation of 10 groups of battery voltage and internal resistance; it is controlled by a high-performance ARM microprocessor. Real color 4.3 inch LCD display in Chinese and English, the operation is more convenient. Widely used in battery manufacturers to quickly sort contact resistance, battery voltage and battery internal resistance. The new and improved sampling circuit can measure any kind of battery. In addition, the instrument has a professional sorting function and sorting signal ring setting, which is applied to the automatic sorting system to complete the fully automatic assembly-line testing. It can also be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.
True color 4.3-inch LCD can display 10 channels of voltage and internal resistance value at the same time, and each channel can be set independently comparator, JK2510 can test resistance: 0.001mΩ ~ 33.000kΩ Voltage: 0.0001V ~ 60.000VDC, new and improved sampling circuit Can measure any kind of battery.
