Test Parameter: AC resistance, DC voltage
Display: 4.3 inch TFT LCD
Basic Accuracy:
Resistance: 0.2%
Voltage: 0.01%
Measurement Range:
Resistance: 0.001mΩ ~ 33.00KΩ
Voltage: 0.01mV ~ 400.00VDC
Signal Source: AC 1kHz, Open circuit voltage < 20mV, Test current: < 10mA
Range: Manual or Automatic
Test Speed: 30 times/second, 10 times/second, 145 times/second
Display Result: Direct reading, Δ%
Regulate: Clear short circuit in full range
Comparator: PASS/FAIL front panel LED display
Trigger: Inner trigger, Manual trigger, External trigger, Remote trigger
Interface: RS232, Handler
Power Requirement:
Voltage: 198VAC ~ 240VAC
Frequency: 50Hz
Power: Maximum 15VA
Size:
Shelf size (mm): 215(W) * 88(H) * 335(D)
Dimension (mm): 235(W) * 105(H) * 360(D)
Others: Key lock and data saving function, internal flash memory, and U disk record
Accessories: 505 Kelvin test line
Accessories Optional: 506A test probe, 506 Test table stick
Product introduction:

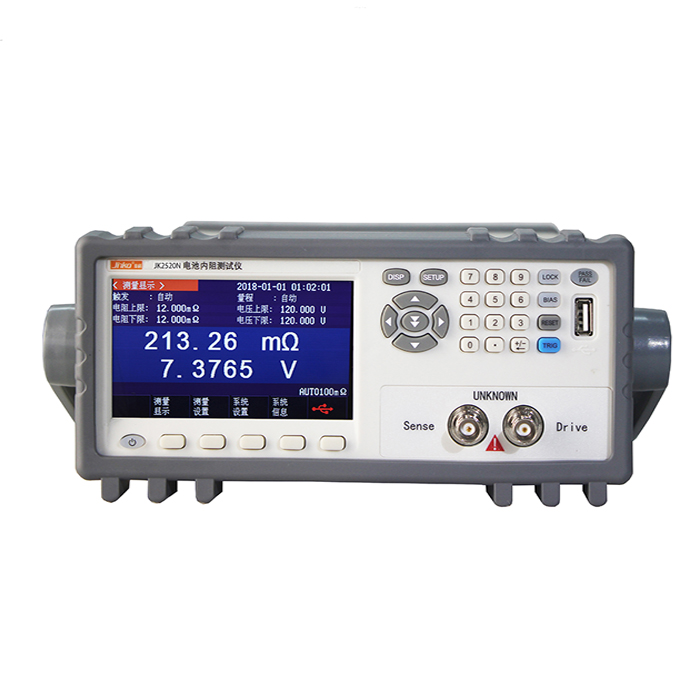

JK2520N is a newly designed battery tester with high precision and high performance. Using high-performance ARM microprocessor control. True color 4.3-inch LCD display in Chinese and English makes operation more convenient. It is widely used in high-performance and intelligent instruments for testing contact resistance, battery voltage and battery internal resistance. The new and improved sampling circuit can measure any kind of battery. In addition, the instrument has a professional sorting function and sorting signal ring setting, which is applied to the automatic sorting system to complete the automatic assembly line test. It can be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.
Performance characteristics:
Adopt the vector method to measure, a variety of parameters measured by colleagues
Comparator (sorting) function
Test line damage detection
Compatible with SCPI instruction set
New and improved sampling circuit
