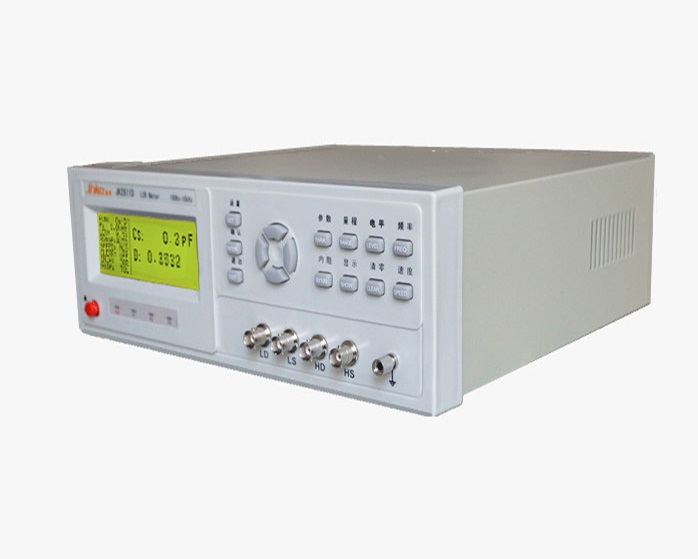

JINKO JK2817B Universal LCR digital bridge

Measurement function

Measurement parameter:L-Q, C-D, R-Q, |Z|-Q

Basic accuracy:0.1%

Equivalent circuit:Series ,parallel

Mathematical function:Absolute value deviation,△%

Range mode:Auto, Hold

Trigger mode:Internal, Manual, External

Measurement speed:Fast: 18, Med:8,Slow: 2.5 (time/second)

Calibration function:Open/Short full correction

Measurement terminal:5-terminal

Display mode:Direct，Δ%，

Display:192*64 LCD display

Measurement signal

Signal frequency:100Hz,120Hz,1kHz,10kHz

Output impedance:30 Ω, 100 Ω

Test level:0.1Vrms, 0.3Vrms, 1Vrms

Measurement display range:

|Z|, R0.0001 Ω —99.999 MΩ

C0.01 pF —99999μF

L0.01 μH —99999 H

D0.0001 —9.9999

Q0.0001 —9999.9

Δ%-999.99% —999.99%

Comparator and interface

Comparator:NG, P1, P2, P3, 4 Bins and Alarm mode setup

Interface:RS232C, Handler (option)

General Specifications

Operation Temperature And Humidity0°C－40°C, ￡90%RH

Power supply:

voltage99V－121V, 198V－242V

frequency 47.5Hz－63Hz

Power consumption:≤20 VA

Volume (W×H×D):270mm×130mm×290mm

Weight:about 3.5kg
