Output voltage: 0～5kV(AC) ±(2%+5V)
Upper limit of AC current: 0.10～12.00mA ±(2%+2 dgts)
Lower limit of AC current: 0.00～12.00mA ±(2%+2 dgts)
Liquid crystal display: 16 x 2 row backlight liquid crystal display
Test time: 0.1～999.9s ±（2%+0.05sec)
Remote control device: Input: Test, Reset Output: Pass, Fail, Test-in-Progress
Test alarm: Buzzer, Indicator light
Correction method: Software correction
Memory device: It can memorize voltage, current, resistance, time, and other setting values.
Temperature / humidity: 0°C～40°C≤ 75% RH
Size / weight: W×H×D: 280mm×100mm×370mm / 10kg
Standard accessories: 26002A
Manual

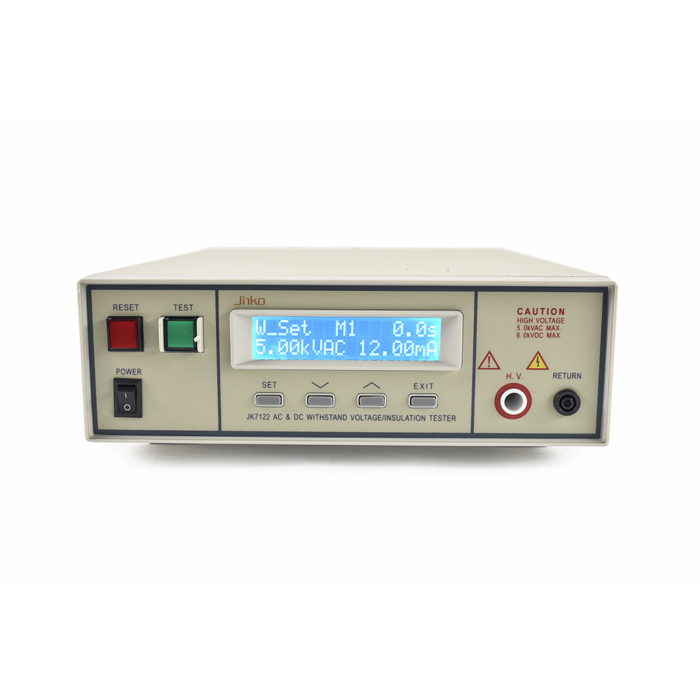

Program controlled withstand volotage insulation tester
Performance characteristics
■ The voltage increases according to the time gradient, looking for analysis breakdown point.
■ Upper and lower limit setting of current
■ Front panel software correction
■ LCD display, menu boot operation
■ Arc detection function (1-9 level)
■ Keyboard locking function
■ 5 groups of measurement and memory patterns
■ The test time, voltage, current and resistance are displayed simultaneously.
■ optional of RS232 and PLC interface
■ Humanized design and simple operation
