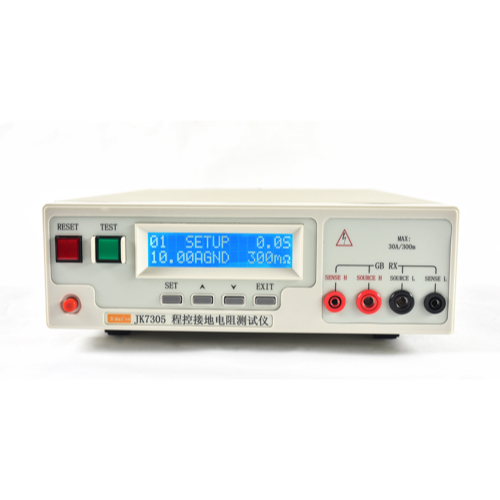

JINKO JK7305 Programmed Ground Resistance Tester (1～300 mΩ, 1～150 mΩ)

Output Current: 3～30A ± (2% ± 2 dgt.)

Test Voltage: AC 6V

Range of Grounding Resistance:

1～300 mΩ, Output Current: 3～10A

1～150 mΩ, Output Current: 10A～30A ± (2% ± 2 dgt.)

Testing Time: 0.1～999.9s ± (2% ± 2 dgt.)

LCD: 16*2 Backlit LCD

Remote Device:

Input: Test, Reset

Output: Pass, Fail, Test-in-Process

Resolving Power:

Current: 0.01A

Resistance: 1mΩ

Test Alarm: Buzzer, indicator light

Correction Method: Software calibration

Memory Device: Memory current, resistance, time, and other settings

Temperature / Humidity: 0℃～40℃ ≤ 75%RH

Standard Accessories: JK26003A

Dimensions/Weight: W×H×D: 280mm × 100mm × 380mm / 10kg

Manual

JK7305 ground resistance tester is used to measure the internal electrical equipment grounding resistance, it reflects the total grounding of electrical equipment around the exposed conducting part and electrical equipment terminal (contact resistance). Ground resistance tester in order to eliminate the effects of contact resistance test, using four terminal measurement method, namely in the measured electrical exposed between the guide part and the main earthing terminal with current voltage measurement, and then it ends, calculate the resistance value.

l Constant current linear amplifier output

l The front panel correction, high accuracy

l Standard RS232, standard PLC interface

l Key lock function

l Four - end measurement precision

l Up to 15 sets of test pattern memory

l Alarm function
