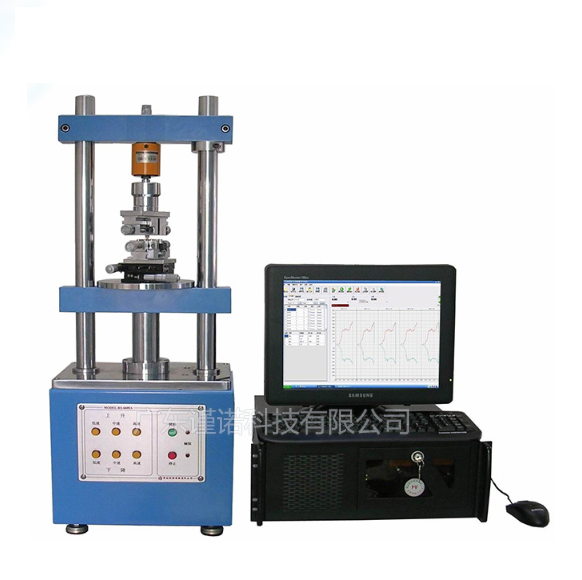

Jinuosh L-1220S Fully Automatic Plug And Pull Force Tester (5~100KGF)

Capacity selection: 5, 10, 20, 50,100 KGF

Unit switch: KGF, N, Lb, GF

Degree of load decomposition: 1/250,000

Load precision: ±0.5%

Minimum load: 0.01 GF,0.01 KGF

Minimum displacement display: 0.001mm

Test speed: 0.01~200mm/min or 600mm/min

Speed accuracy: ±0.5%

Motor: Servo motor imported

Sensors: American force transducers

Machine size: 360x270x950mm

Weight: about 70kg

Configuration:

Test machine body

Industrial computer, Philips monitor

HP color printer

Load (50, 20, 5, 2kg)

X-y sliding table (with micrometer)

One set of standard fixture on top and bottom (can be customized according to requirements)

Automatic centering device



Optional accessories for equipment:

Groove milling machine (special fixture for easy deformation connector)

Single PIN in a special fixture for plastic retention

Frame height fixture (special for wire outlet)

Dynamic impedance test
