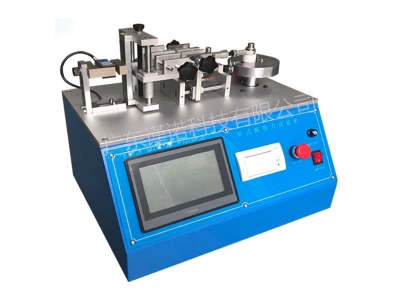

Jinuosh L-P04-II Horizontal Insertion Force Testing Machine (0~20kg, 0~60mm)

Frequency range: 0~999999

Transmission mode: rotate eccentric wheel

Display mode: Chinese LED real-time display

Insertion and pulling force range: 0~20kg

Resolution of minimum insertion and extraction force: 0.01kg

Stroke adjustment example: 0~60MM

Test speed: 5-60 times /min (digital display)

Conversion of two units: KG, LB, N

Working voltage: single-phase 220V

Compared with positive load value, the software is simple and convenient to operate

Volume: 550mm*450mm*650 mm

Power supply: 220V, 50Hz, 2A
