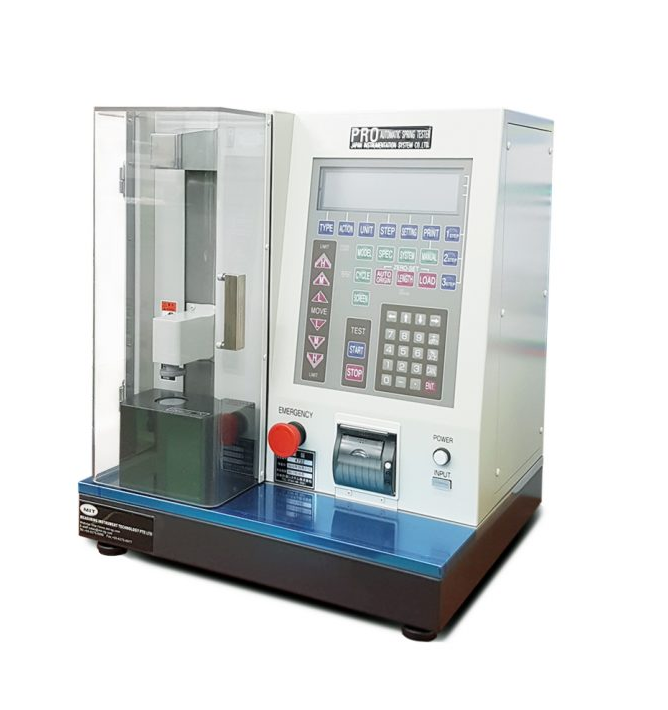

JISC PRO-1N Spring Tester (1N (100gf))

Maximum Load: 1N (100gf)

2 Step Auto Switch Over Load Capacity: 1N / 0.1N (100gf / 10gf)

Load Resolution (N): 0.1mN / 0.01mN

Load Resolution (gf): 0.01gf / 0.001gf

Load Accuracy: JIS B7738 Class 0.5 (± 0.5% of Applied Load)

Unit: N, kgf, gf, lbf

Test Speed: 1~600mm/min

Maximum Stroke: 150mm

Length Resolution: 0.01mm

Length Accuracy: ± (0.05 + 0.0001 * L) mm where L is the arbitary length

Anvil Diameter: 20mm Ceramic for both Upper & Lower

Power Supply: Single Phase AC 220~240V (50/60 Hz)

Power Rating: 100VA

Dimension: W450 x D400 x H530mm

Weight: Approx. 60kg

JISC produces extremely low capacity spring tester that conform to highest Grade 05 of  JIS B 7738.

This tester is meant only for compression spring to cater for Medical  Industries, High End Branded Ball Pen Industries, Fax Scanner Machine Industries & etc.
