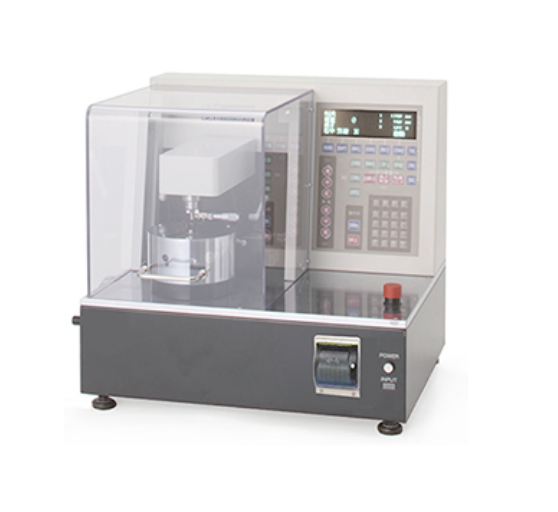

Maximum Torque: 1Nm
2-Step Auto Switch Over Range: 1000Nmm/ 100Nmm
Torque Resolution: 0.1Nmm/ 0.01Nmm
Test Speed: 10 ~ 1800 Deg/min
Maximum center pin diameter: Ø6.5
Maximum X-Axis Movement: 13mm
Maximum Y-Axis Movement: 50mm
Maximum Measuring Angle: 0.1 ~ 7200.0 Deg
Deflection Direction: Left & Right
Power Supply: Single Phase AC 200 ~ 240V (50/60Hz)
Power Rating: 200VA
Dimension: W550 x D450 x H520mm
Weight: 75kg
CHARACTERISTICS
• Manual or Automatic test can be selected.
• Measurement of torque and load, as well as angle based on torque or load input are done easily. (PRO-TS Type)
• Jacob Chuck is built in the rotating table which provides a very convenient structure for holding the center pin.
• Can saved up to 50 memories of test conditions . Test can start immediately once condition are retrieve.
FEATURES
Position of XY table and rotary table are display on the screen by numeric information from digital scale.
Position of Load Pin, support Pin & Center Pin are automatically calculated and display on screen.
OK / NG judgement is display by bar chart on the screen with spec input.
