Technical parameter：
Vickers hardness scale: HV0.3, HV0.5, HV1, HV2, HV2.5, HV3，HV5，HV10，HV20，HV30，HV50
display: 5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average value, etc.
Test force(Kgf): 0.3, 0.5, 1, 2, 2.5, 3, 5, 10, 20, 30, 50kgf
Test mode: HV/HK
Objective lens and indenter switch: automatic switch
Measurement multiple: double objective lens measurement 10X,20X can be measured
Loading control: Automatic (load/hold/uninstall)
Test force retention time(s): 1～99
Optical channel: Dual light channels (eyepieces and CCD camera channels)
Optical system:
Objective lens: 10×, 20× (optional 40X) Eyepiece magnification: 10× (optional 15X)
Total magnification (μm): 100×, 200× Measuring range (μm): 400
Resolution (μm): 0.125
Language: Chinese and English
Executive standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Hardness measurement range: (5-3000)HV
Maximum height of specimen (mm): 165
Maximum width of specimen (mm): 130 (distance from the center line of the indenter to the wall)
voltage: AC220V/50HZ
Overall size (mm): 585×200×630
Weight (kg): 42
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.
2. On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.
3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;
4. Our company has its own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrade services for life.

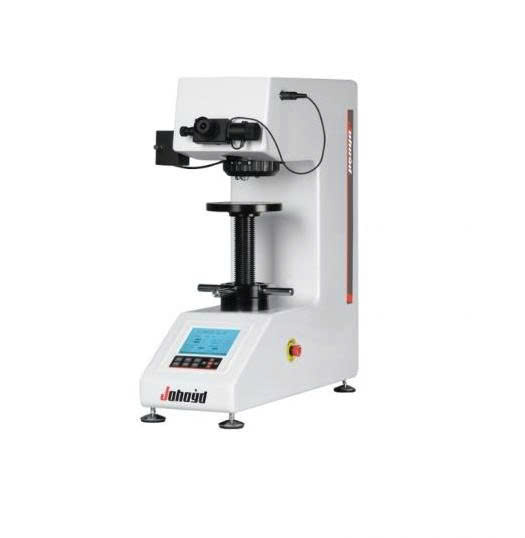

5, CHVS-50Z models can be achieved: observation - test - measurement of the position switch by the automatic turret
6.CHVS-50Z model can realize: the position switch of observation-test-measurement is completed by automatic turret;
7. Equipped with a large LCD screen; the large LCD screen display is convenient for observation, and the test conditions and test process are intuitive and clear;
8. Optional built-in printer; direct printing of test results and test data;
The main purpose and scope of application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating
3, glass, wafers, ceramic materials, carbonization;
