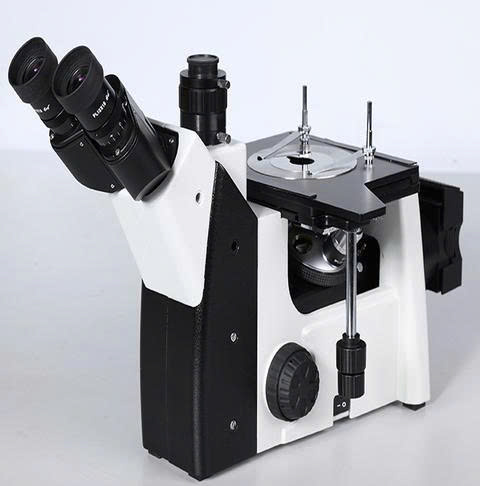

Technical Parameters:
eyepiece: High eyepoint, ultra-wide field of view plan eyepiece PL10×/18
Infinity plan achromatic ultra-long working distance objective lens: LWDPL5×, LWDPL10×, LWDPL20×, LWDPL50×,Hinged trinocular observation tube, 45° tilt, interpupillary distance 54-76mm
converter: Internal positioning four-hole converter
Mirror body:
Low-hand position coaxial coarse and fine movement lifting mechanism, stroke 38mm, fine adjustment accuracy 0.002mm
Adjust tightness and random limit device, fixed platform 180*155mm
Metal stage and moving ruler
Lighting system:
Reflective Kola lighting system with variable aperture diaphragm and center adjustable field diaphragm
Adaptive wide voltage 100-240V, 5W warm color LED light, center adjustable, light intensity continuously variable
Color filter: Blue color filter (ф32mm)
Camera device: 0.5X focusing lens (with C mount)
Main functions and features:
The instrument is equipped with a CCD camera system, which can collect metallographic maps in real time, which is convenient for multiple people to observe, compare, analyze and research on site, and perform calibration comparison, rating and fixed-time printing;
The image can be processed, edited, saved and output by the computer (such as printing, etc.) or entered into the multimedia system and e-mail;
The system is also equipped with professional quantitative metallographic image analysis computer operating system software to perform real-time measurement, rating (in compliance with national standards and other relevant industry standards), analysis, statistics and output graphic reports on the collected sample maps;
The system configuration is scientific and easy to operate. It is widely used in enterprises and institutions such as industrial and mining, quality inspection, scientific research and teaching.
Scope of application:
Metallographic microscope is used to identify and analyze the organization structure of various metals, alloy materials and non-metallic materials. It is widely used in factories or laboratories for raw material inspection; casting quality identification or metallographic analysis after material treatment; and surface cracks The research work on some surface phenomena such as spraying and spraying is the metallographic analysis of steel, non-ferrous metal materials, castings, and coatings; the petrographic analysis of geology; and the effective means of microscopic research on compounds and ceramics in the industrial field. It is also a powerful assistant in the field of scientific research and teaching.
