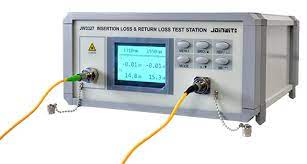

Type : JW3327A
Insertion Loss Part : SM
Test Wavelength（nm) : 1310/1550（±10nm）
Fiber Type（um) : 9/125
Output Power（dBm）: ≥-5
Output Stability（dB）: ±0.005(15min@25℃)
Connector typeFC/APC
Test Range（dB）: 0~75
display resolution : 0.1
Insertion Loss Part
Detector type : InGaAs 2.0
Wavelength Range（nm) : 800~1700
calibration wavelength（nm) : 850/1300/1310/1490/1550/1625
Measurement Range（dBm) : +3~-75
power uncertainty（dB) : 0.25dB(+3~-55dBm)
General Index
Display Screen: 3.5inch TFT Color Screen
Communication Port : USB2.0/RS232/Wireless module（Optional）
Operating Temperature(℃) : -5~+40℃
Storage Temperature : -25~+70℃
Power Supply : AC 220V
Size(mm) : 280x260x120
Standard Configurations :
1 . JW3327 : 1Unit
2. Power Line : 1PC
3. Adapter（FC\SC\ST2.5mm、1.25mm) : 1Set
4. FC/APC-FC/PC Standard Fiber（SM/MM) : 1PC
5. FC/APC-FC/APC Standard Fiber（SM/MM) : 1PC
6. User Manual : 1PC
7. Clean Cotton Swab : 1Bag
8. Fuse: 1PC
9. CD Disk（Optional) : 1PC
10. USB Line（Optional) : 1PC
11. RS232 serial port（Optional) : 1PC
12. Wireless module（Optional) : 1Set
13. Foot switch : 2PCS
