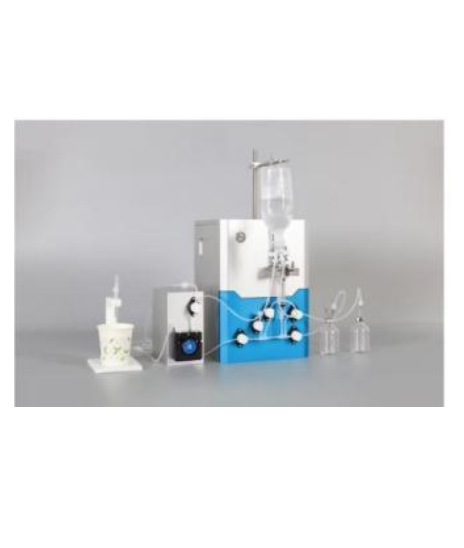

JOVVI JV-131PLUS Automated Dosing System

Complete the entire process of I-131 drug aliquoting, dilution, activity measurement, and administration in a single operation

Dosage form: Activity-based dispensing, Volume-based dispensing

Purpose of packaging: vials, medication cups, etc.

Packaging control: Full-line automation

Activity correction: Automatic half-life correction of activity

Concentration dilution: Automatic dilution volume for water for injection

Linear： ±2%

Dosage volume: minimum 0.1ml

Packaging volume: maximum 50 ml

Resolution ratio, resolving power ： 0.1ml

Better than activity correction： ≤ 1 Ci / ml

Actual filling time： ≤ 50 s

Enclose the container volume： 30ml

System testing: Real-time self-detection of the entire system

Device Communication: Automatic communication of activity meter (compatible

with CRC series from Caipintec, USA)

Operating system: Windows Chinese

Database: Functions for data entry, storage, querying, and printing

Interfaces: RS-232, USB, Ethernet port

Video surveillance: 2 channels

Audio intercom: Yes

Control the computer: Yes

Label Printer： Yes

External dimension： 275 mm (L)*278 mm (W)*292 mm (H)
