Max Weight of Workpiece (kg): 1.6
Max Diameter of Workpiece (mm): 30-130
Journal Diameter (mm): φ5-16
Balancing Speed (r/min): ≤2500
Balancing Motor Power (kw): 0.4 KW Servo Motor
Min Achievable Residual Unbalance Amount (g.mm/kg) : ≤0.3
Testing Time (second): 45905
Reduction Rate of Unbalance: ≥90%
Working Pressure (MPa): 0.4-0.6
Operating Voltage (V): AC: 380V external
Milling Mode: Drilling
Take Time (second): 12-15 Drilling once on the left and right side
Drilling Power (kw): 0.75
Average Machine Consumption(l/min): 50

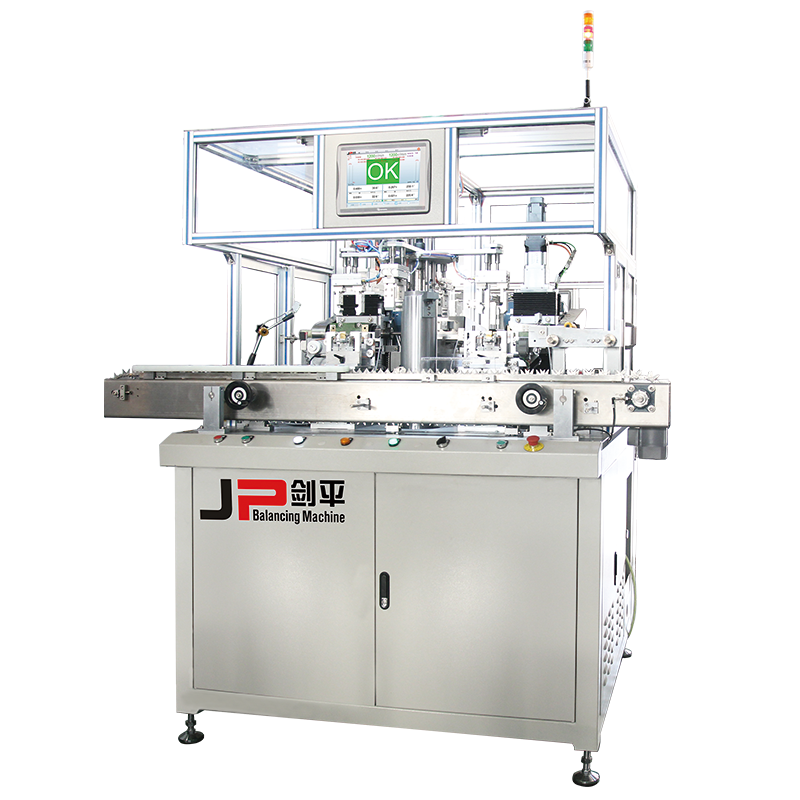

Balancing Machine Type: Soft Bearing Measuring Bracket
Machine Total Power (kw): 9.5
Protection: Phase Sequence Protection, Overload Protection, Air Pressure Monitoring
