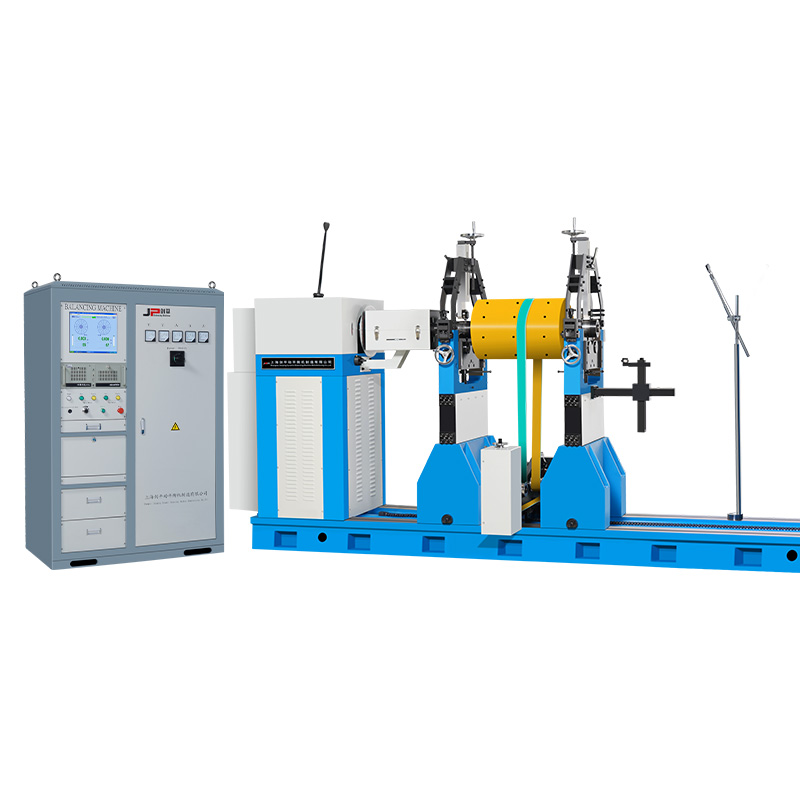

Applicable to Huge workpieces
Mass Scope of Workpiece(kg): 100000
Max Diameter of Workpiece(mm): Φ4200
Distance Between Two Support Bearings(mm): Min 600
Journal Diameter Scope of Workpiece(mm): Φ100~650
Max Distance between Driving Flange and Right Bearing Support (mm): 9500
Rotational Speed of the Main Axis(r/min): 124,187,255,373,473,627, 853,1588
Motor Power (kw): 200(1)
Torque of Universal Joint Shaft(N·m): 18000
Length of Bed (mm): 12000
Min Achievable Residual Unbalance Amount(emar): ≤1g· mm/kg
