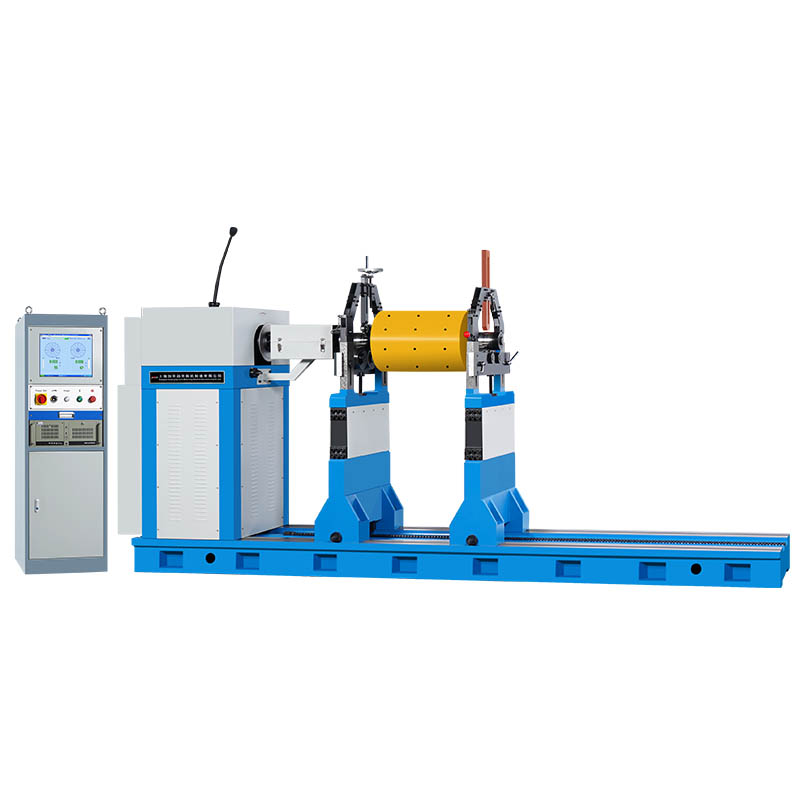

Applicable to medium workpieces
Mass Scope of Workpiece(kg): 5000
Max Diameter of Workpiece(mm): Φ2400
Distance Between Two Support Bearings(mm): Min 320
Journal Diameter Scope of Workpiece(mm): Φ40~380
Max Distance between Driving Flange and Right Bearing Support (mm): 2500
Rotational Speed of the Main Axis(r/min): 133,255,396,634,970
Motor Power (kw): 15(1)
Torque of Universal Joint Shaft(N·m): 1250
Length of Bed (mm): 4000
Min Achievable Residual Unbalance Amount(emar): ≤0.5g· mm/kg
