Application
Laser cutting
Laser welding
3D printing
Precision drilling
Other applications
Specification
Nominal Average Output Power (W): CW: 400; QCM: 300
Maximum peak power (W): 3000
Maximum pulse energy: 30J
Repeated frequency (kHz): 0.001 ~ 10 (Rated Output Power)
Pulse Width (ms): 0.01 ~ 10 (Rated Output Power)
Beam parameter product (mm*mrad): ≤0.55 @25um
Central Emission Wavelength (nm): 1080
Spectral Width @3dB (nm): <4
Armored Cable Length (m): 5
Cooling method: air cooled
Operating voltage (V): 48 (DC)
Switch on/off time (us): <20
Operation Temperature (℃): 10 ~ 40
Storage temperature (℃): -20 ~ 50
Net weight: 65 kg
Size (W x D x H): 483×648×234 mm

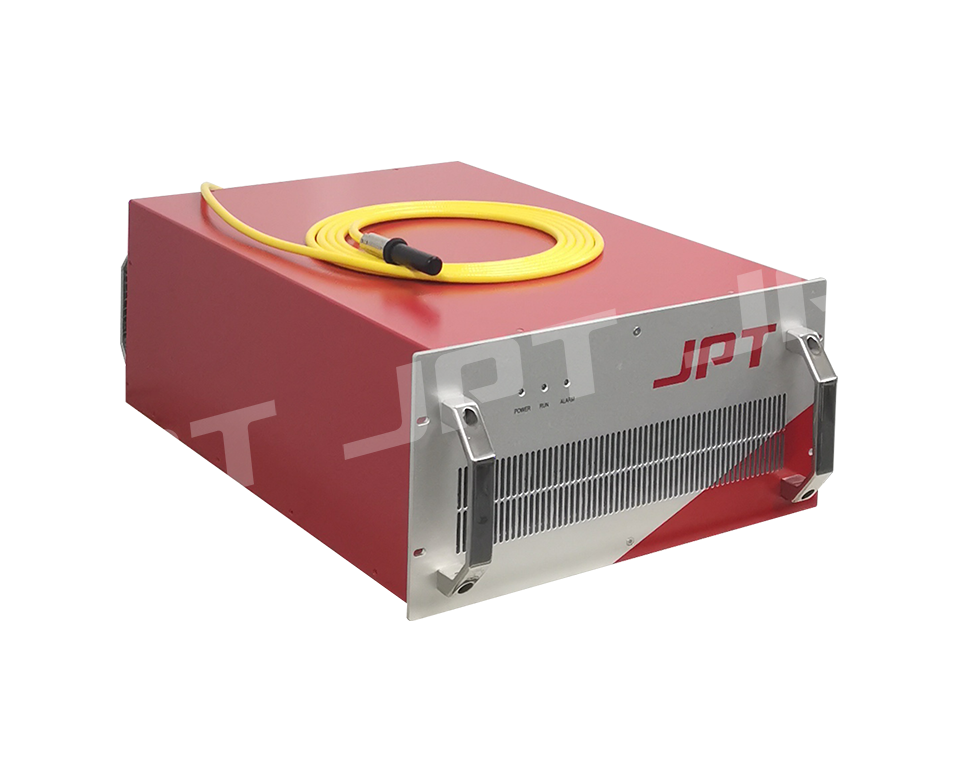

JPT QCW fiber laser is the optimal combination of optical, mechanical, electrical and software components. Through the controlling ports and the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected. The laser uses air-cooling and shelf case design, with competitive advantage like high energy conversion (electric to light), low power consumption, maintenance free, fiber delivery, and easy move, it is the best option laser source for welding, cutting and other applications.
