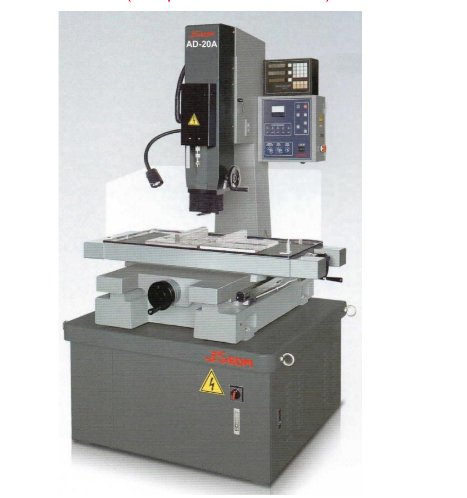

JSEDM AD-20A Drilling EDM (Ø0.2~Ø3.0 mm)
ManufacturerJSEDM (View more products from this manufacturer)
ModelAD-20A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Working table dimension: 460x210 mm
Electrode Diameter: Ø0.2~Ø3.0 mm
Max. Workpiece Dimensions: 630x420 mm
Max. Workpiece Weight: 80 kgs
Table Travel X, Y: 300x200 mm
Dielectric;: Water
Z Axis Travel: 350 mm
Capacity of Dielectric: 20 Litres
Ram Servo Travel: 330 mm
Machine Weight (NW / GW): 550 / 650 kg
Max. Length of Electrode: 400 mm
Packing Dimensions: 1240x1210x2240 mm
