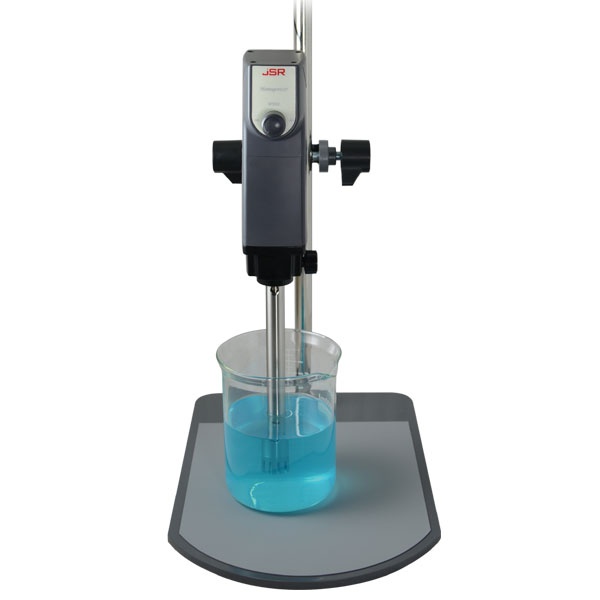

JSR JSHR-270A Analog Homogenizer (27,000 rpm)

Speed Range: Approx. 27,000 rpm (w/o Load)

Max. Volume: Max. 2,500 ml H₂O

Motor Rating (Input/Output): 400 / 300 Watt

Speed Control: Stepless Volume Control

Independent ON/OFF Switch: Yes

Safety: Over Heat Protection

Power Consumption: 400 Watt

Material: Aluminum Casting and ABS Plastic

Usable Dispersing Tool: Ø 8 mm / Ø 10 mm / Ø 18 mm / Ø 25 mm Stator

Extension Arm: Ø 12.7 mm x L 250 mm

Electrical Requirement:

120 ±10% VAC, 60 Hz, 1-Phase

230 ±10% VAC, 50/60 Hz, 1-Phase

Plug Configuration: CEE 7/7 Schuko or BS 1363
