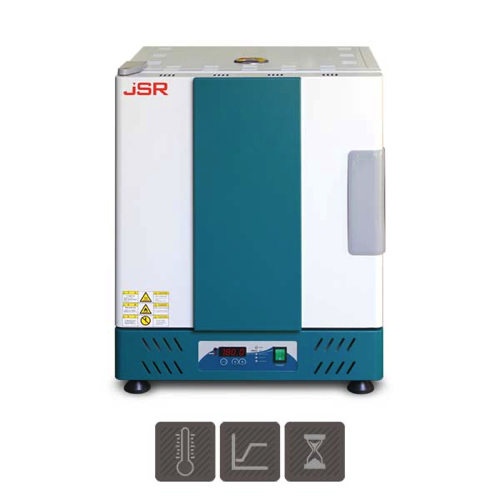

JSR JSOF-030S Forced Convection Dry Heat Sterilizer (33L; 800 W, 3.8 amp)

Air Circulation: Forced Convection

Chamber Volume: 33 Liters

Inner Dims. (WxDxH) mm: 350 x 270 x 350

Outer Dims. (WxDxH) mm: 510 x 570 x 660

No. of Shelf Positions: 10 ea

No. of Shelf Included: 2 ea

No. of Ventilation Damper: 1 ea

Performance Data

Heating System: Forced Convection

Temperature Range: Ambient +10 °C to 250 °C, 0.1 °C Resolution

Temperature Accuracy at 120 °C: +/-0.2 °C

Temperature Uniformity at 120 °C: +/-1.0 °C

Heat-up Time to 120 °C: 15 min.

Controller

Type: Digital Microprocessor PID Temp. Controller

Display: 4 Digit LED Display

Control Logic: PID Temperature Control with Auto-Tuning

Calibration: 1 Point Temperature Offset

Auto-Start Timer: 99 min 59 sec / 99 hr 59 min / 99 day 23 hr

Auto-Stop Timer: 99 min 59 sec / 99 hr 59 min / 99 day 23 hr

Sensor: Class A Pt-100 Ohm Sensor

Power Restoration: Power and Timer Restoration Function in Case of Power Outage

Communication Interface: n/a

Electrical Data

Power Requirement: 220 +/- 10% VAC | 50/60 Hz | 1 Phase

Power Consumption: 800 W, 3.8 amp

Usable Condition

Temp. & Humidity: 5°C ~ 40°C, 80% RH Max.
