Order code: 404366/000-451-405-504-20-61/000
Input: 0 to 0.25 bar relative pressure
Output: 4 to 20 mA, two-wire
Process connection: G 1/2 DIN EN 837
Material of process connection: CrNi (stainless steel)
Electrical connection: Cable socket DIN EN 175301-803, Form A
Extra code: None

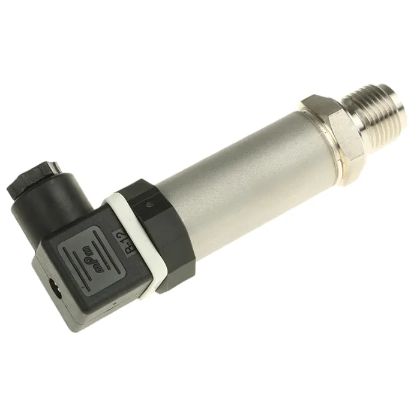

The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
