Order code: 906139/0-1.7-2.2-1-100-10-1-030
Temperature range: -50 to +250 °C
Deviations possible depending on the type of mounting
Version: Standard
Width B: 1.7 mm
Length L: 2.2 mm
Height H: 1.0 mm
Nominal value of resistance R0: 100 Ω (Pt100)
Wire length L1: 10.0 mm (standard)
Type of packaging: Clamshell packaging (standard), packaging unit 100 pieces, loose
Tolerance class: F 0.3

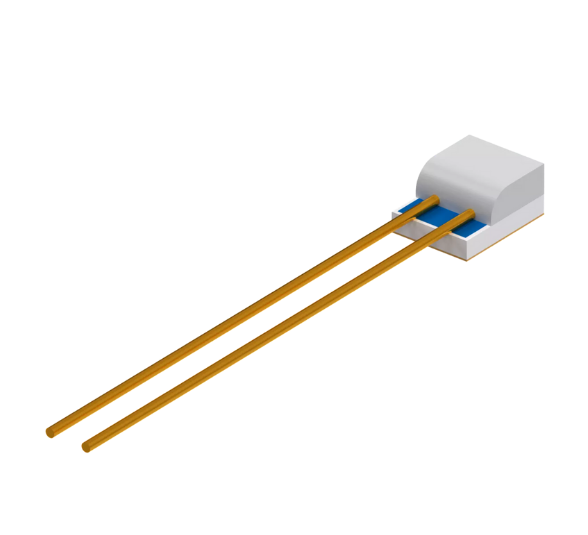

Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
