Order code: 402071/999-453-405-613-53-36-01/374,870
Basic type extension: Special version
Input: 0 to 0.6 bar relative pressure
Output: 4 to 20 mA, 2-wire
Process connection: Clamping socket (clamp) DN 25, 32, 40, DIN 32676
Process connection material: Stainless steel 1.4404/1.4435
Electrical connection: Round plug M12 × 1
Measuring system, filling medium: Silicone oil
Extra codes: Inspection certificate 3.1 EN 10204 – material, inspection certificate 3.1 EN 10204 – surface

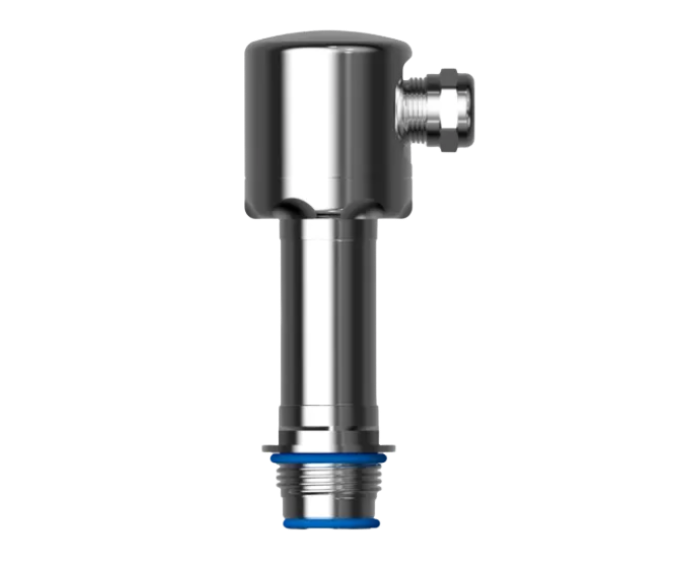

The pressure transmitter is used to acquire relative and absolute pressures in liquid and gaseous media. The JUMO TAROS S46 H with analog output signal has been developed specifically for hygienic applications. The pressure transmitter has a pressure measuring cell with a piezoresistive silicon sensor. The pressure is converted into an electrical current or voltage signal and output via various electrical connections.
Datasheet
