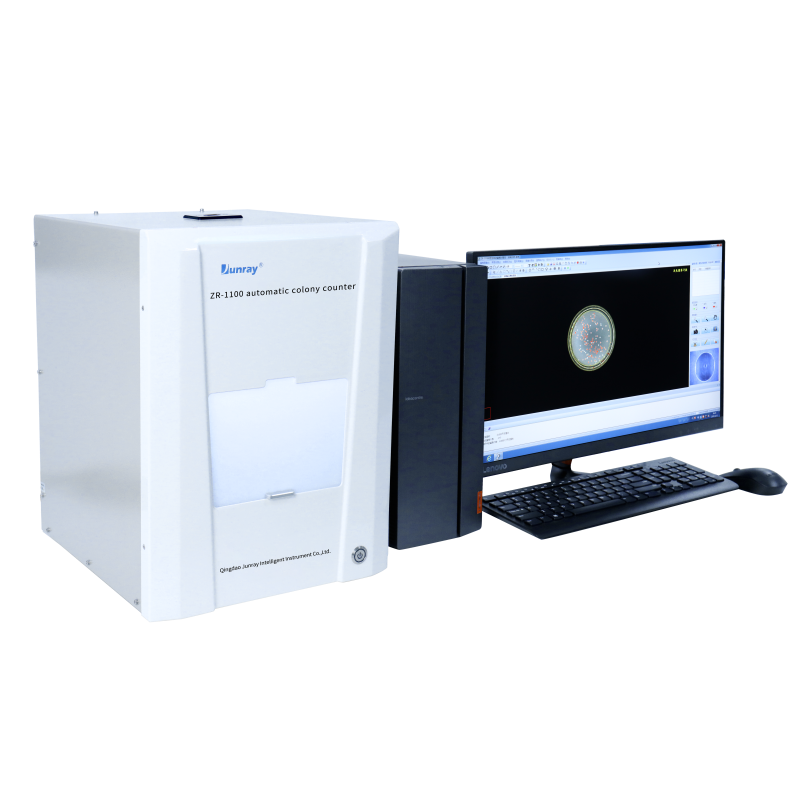

Junray ZR-1100 Automatic colony counter (500 colonies <1s)

CMOS specification: 10 million pixel, true color

Image capture: Auto focus, auto white balance, auto color temperature control

Photography and filming: Front open, automatic elimination of external interference, automatic centering, black box shooting

Upper light source: Multi-directional transmitted light, adjustable light source brightness

Lower light source: Bottom transmitted light darkroom shooting system

Petri dish type: Pour, spreading, membrane filtration, 3M Petri film paper and various petri dishes

Counting speed: 500 colonies <1s

Automatic impurity removal: Automatically remove impurity according to the difference of shape, size, color, etc

Colony Morphology Analysis: Automatic analysis the area, girth, roundness, maximum diameter, minimum diameter

Select counting area: Basic circle, semicircle, circle, rectangle, sector, and random area

Inhibitory zone:

- Detect inhibitory zone automatically: Automatically measure the diameter of multiple inhibitory zone

- Manual measure the inhibitory zone: The boundary of the bacteriostatic circle with fuzzy edge was accurately measured by the circle of 2 points

Image processing:

- Image enhancement: Image adaptive enhancement, color component enhancement, colony edge sharpening, image flattening

- Image filtering: Low filter, high filter, Gaussian filter, Gaussian high through-put, mean filter, Gaussian filter, Order filter

- Edge detection: Sobel detection, Roberts detection, Laplace detection, vertical detection, horizontal detection

- Image adjustment: Gray scale conversion, negative phase conversion, RGB three-channel brightness, Contrast, Gama adjustment

- Morphological operation: Erosion, dilation, opening operation, close operation

- Image segmentation: RGB segmentation, Gray scale segmentation

Note measurement:

- Instrument calibration: System comes with calibration function

- Colony labeling: Label with Line, angle, rectangle, broken line, circle, character, curve and so on.

- Colony measurement: Measure line, angle, rectangle, circular arc, circle, section, curve and so on.

Colony recognition:

- Recognize colony color: Automatic recognition and count according to the colony color.

- Recognize multiple color colonies: Perform division counting according to background color, recognize at most 7 color

Date processing:

- Date export: Stored data can be exported in Excel format or printed in data report format

- Data storage: Images and all results are stored in a database

- Data query: Query colony images and stored results by date

Drug susceptibility with automatic paper method: The system contains all the data of the fourteenth edition of the US NCCLS “Antimicrobial Susceptibility Test Standards”

Count basic colony: Count E-Coli. and Staphylococcus aureus, conform to plate counting method and automatic counting method in national standard GB 4789.3-2010

Helix counting: Count helical incubated petri dish and perform result calibration

Work temperature: (0～50)℃

Host size: (length 340 x width 355 x height 400)mm

Host power consumption: ≤50W

Host weight: about 7.5kg

Power adaptor:

- Input AC100～240V 50/60Hz

- Output DC24V 2A

Features

Instrument comes with calibration and various functions like graphic noting and measuring.

Single color colony recognition, simultaneously recognition different color colony automatically and so on detect methods.

Automatic division of connected colonies, manual division, count rollback, the counting result is accurate and fast.

Powerful image processing software.

High resolution colored industry camera.

Select counting area, high efficiency and rapid, export data of colonies like diameter, roundness, girth, area, number and so on.

Data preservation and query function.

Report forms could be exported in EXCEL form or be printed directly.

Equipped with a image processing PC.
