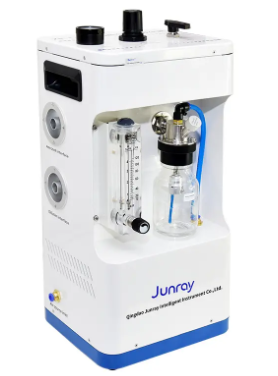

Junray ZR-1304 Aerosol generator (0.01-2 μm, 0-0.25 MPa)

Short Description:

ZR-1304 oil aerosol generator is a special instrument that could generates oil aerosols with cold generation method. The range of output aerosol concentration is 0~200 mg/m³ when the airflow is 0~120 L/min, and you can adjust the aerosol concentration in a wide range by manually adjusting the dilution flow. The performance of aerosols conform to related national standards and applicable to medical device inspection institutes, centers of disease control and preservation, pharmacy companies, leakage detection of HEPA filters in clean rooms.

Description

Working pressure: 0-0.25 MPa

Generation type: Cold generation

Compressed air: External cold and dry clean air

Particle size of aerosol: 0.01-2 μm

Aerosol agent: Liquid paraffin、DOP oil etc.

Aerosol agent capacity: 250 ml

Size(L×W×H): (240×210×480) mm

Weight of the whole machine: About 2.5 kg

Product Detail

ZR-1304 oil aerosol generator is a special instrument that could generates oil aerosols with cold generation method. The range of output aerosol concentration is 0~200 mg/m³ when the airflow is 0~120 L/min, and you can adjust the aerosol concentration in a wide range by manually adjusting the dilution flow. The performance of aerosols conform to related national standards and applicable to medical device inspection institutes, centers of disease control and preservation, pharmacy companies, leakage detection of HEPA filters in clean rooms.

Features

> External connected high-pressure cold air source makes airflow stable and aerosol output balanced.

> Be able to generate micron and sub-nano size aerosols.

> The concentration of aerosols is adjustable.

> It can use multiple agents to generate aerosols, such as liquid paraffin, DOP oil, etc.

Agents can be added through liquid injection port, which is convenient and quick.
