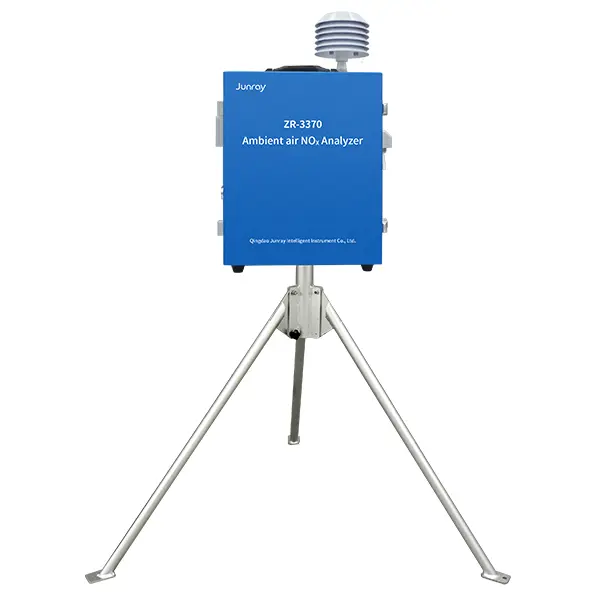

Junray ZR-3370 Ambient air NOX Analyzer ((0～500）ppb)

NOx concentration: (0～500）ppb

- Resolution: 0.1 ppb

Sampling flowrate: (450±45）mL/min

- Resolution: 1mL/min

Zero point noise: ≤0.25 ppb

Minimum detection limit: ≤0.50 ppb

Linearity: ±2% F.S.

Zero drift: ±1 ppb

Span drift: ±1% F.S.

Span noise: ≤2.0 ppb

Indication error: ±3% F.S.

Response time: ≤120 s

Flow stability: ±10%

Voltage stability: ±1% F.S.

Effect of ambient temperature changes: ≤1ppb/℃

NO2 conversion efficiency: ＞96%

Data storage: 250000 groups

Dimensions: (L395×W255×H450) mm

Host weight: About 16.5kg

Power supply: AC(220±22)V，(50±1)Hz

Consumption: ≤450W(With heating)

Working condition: (-20~50）℃

Principle

Chemiluminescence relies on the reaction of NO with ozone. The chemical oxidation of NO by ozone yields NO2 in an excited state. Relaxation from this excited state produces distinctive light emission (chemiluminescence) that is directly proportional to NO concentration.

The intensity of light emitted is directly proportional to the concentration of NO.

Features

Powerful function and ensure data stable

Equipped with precision light sources and optical sensors, ensure long service life and effective anti-interference.

Using a high-efficiency molybdenum conversion furnace, the conversion efficiency≥96%.

Adaptive filtering algorithm, fast response, low detection limit, high sensitivity.

Measure environmental temperature, humidity, pressure, and provide real-time compensation for temperature and pressure, suitable for stable and accurate monitoring in different conditions.

Users friendly

Low maintenance workload and cost, filters are replaced every 14 days, without any other maintenance.

Datas can be switched to ppb, ppm, nmol/mol, μmol/mol, μg/m3, mg/m3

7-inch touch screen, easy to operation.

Zero point and span calibration can be performed manually.

Store over 250000 data, check and print the data in real time by Bluetooth printer and exported by USB.

Support GPS and 4G remote data upload.

Excellent protective performance

Lightweight, easy to carry and install, rainproof and dustproof.

A rugged IP65 weatherproof enclosure provides optimal performance, even in extreme conditions, purpose-built for the outdoors, unmanned monitoring.
