Operation conditions
Ambient temperature: (23±2) °C
Relative humidity: （50±10）%
1. Capacitance range: 100pF～111.1110μF
2. Minimum step size: 100pF
3. Digits of reading: Six-digit decimal system
4. Zero-switch capacitance: <0.00005pF
5. Error :
100pF～1μF: ±0.03%
1μF～111.1110μF: ±0.05%
6. Output mode: Three-terminal and four-terminal-pair output
7. Calibration frequency/operating frequency (f):
100pF～1μF: 1,000Hz
1μF～111.1110μF: 100Hz
8. Maximum operating voltage (U):
100pF～1μF: ≤100V
1μF～111.1110μF: ≤50V
Datasheet
Features

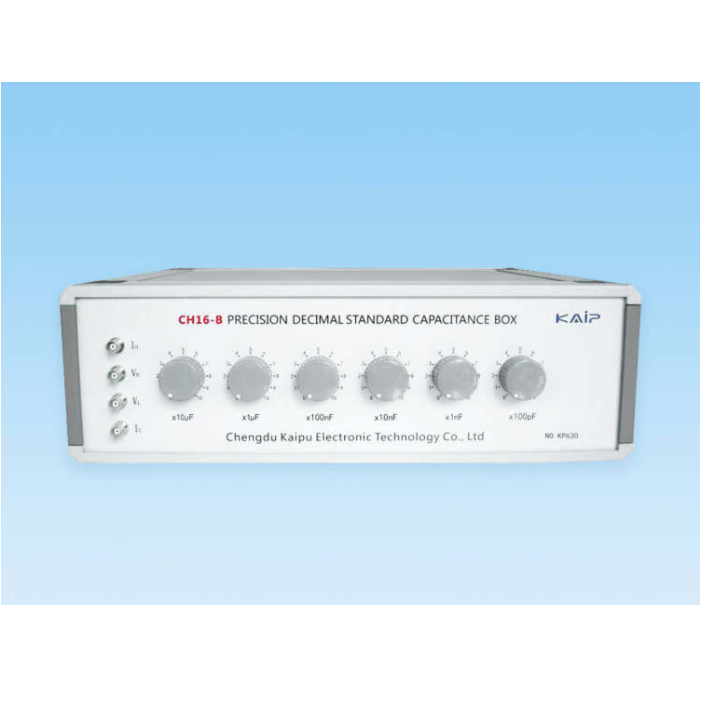

CH16-B precision decade large-capacitance box is a standard capacitance measuring instrument designed for measurement institutes, research institutes, production measurement and laboratories. The capacitance range is from 100pF to 111.1110μF with a minimum step of 100pF and zero-switch capacitance less than 0.00005pF. The capacitance box has six-digit decade readings.
This capacitance box has both three-terminal and four-terminal output modes and can be connected to the instrument through BNC socket. Three-terminal output is on the right side and four-terminal output is on the left side.
The capacitance box adopts new-structure changeover switch, high-quality capacitor synthetic material, and precision standard capacitor manufactured through special processing. It has stable and reliable capacitance and is easy to use.
