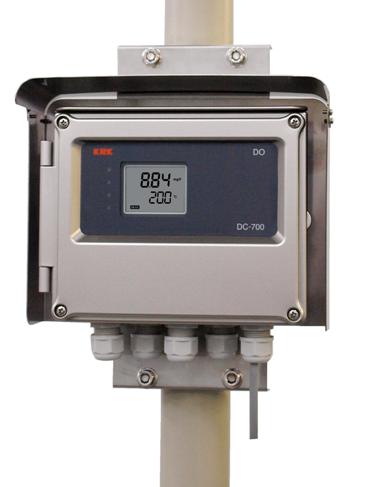

KASAHARA DC-700 DO Meter (0.00 ~ 20.00mg/l)

Measuring principle: Galvanic electrode method

Indication: LCD 4-digit, 2-stage (backlight)

Measuring range:

DO (upper display): 0.00 ~ 20.00mg/l

Water temperature (lower display): 0.0 ~ 50.0°C (temperature is displayed only)

Reproducibility: ± 0.1mg/L or less (with equivalent input)

Salinity correction: Chlorine ion concentration 0 or 19000 mg/L (internal instrument switching), 0

mg/L at factory default

Calibration function:

(1) Air calibration

(2) Calibration with saturated water

Power supply voltage: AC85～240V, 50/60Hz

Power Consumption: Approx. 10VA or less

Ambient conditions:

Temperature: -5~45°C

Humidity: 85%RH or less

External dimensions:

Instrument body: 215×170×95, Approx. 1.75kg (with mounting plate)

With hood: 244×196×105, Approx. 2.5kg (with mounting plate)
