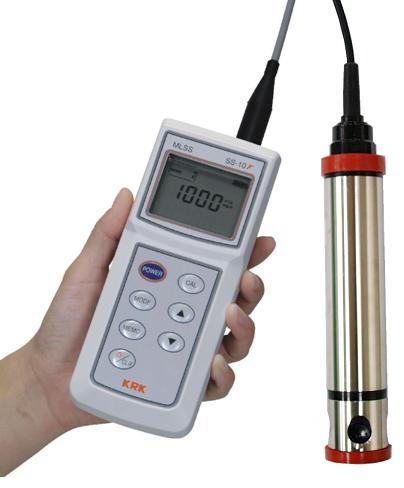

KASAHARA SS-10F Sludge lever meter

MLSS measurement method: Light transmits near infrared pulses

MLSS measuring range: 0 to 20000 mg / L

MLSS Measurement Modes Built-in linear gauge allows for selective measurement of modes according to the application

For example:

Milk residue regime, food residue

Food residue regime

Combined septic tank mode

Sludge regime for wastewater treatment

Mud regime for manure treatment

Condensed sedimentation regime

MLSS Minimum Resolution:

10 mg / L (0 to 10000 mg / L)

100 mg / L (10000 to 30000 mg / L)

MLSS device reproducibility: Within ± 2% of specified value under certain conditions (within ± 150 mg / L for 5,000 mg / L or less)

Power source: AAA Alkaline dry battery (LR03 x 3)

With auto power off function (30 minutes after power on)

External dimensions of the unit: 70 (W) x 36 (H) x 170 (D)

Detector: Ф40 x 214

Test probe type: SSD-10F

<No pressure sensor>

Standard cable length 6m (extendable up to 11m)

Body weight: Approximately 300 g, Measuring probe: 550 g (cable not included)

Standard configuration: Meter (with 6m cable), AAA alkaline dry battery (LR3 x 3)

Shock absorbing, top and bottom padded rubber gauge, cleaning brush, strap

Datasheet
