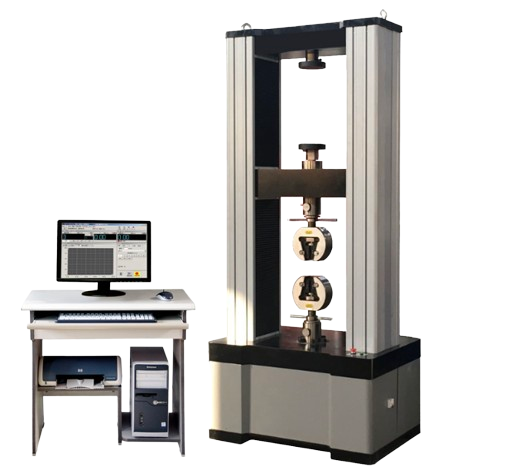

Max. Load: 200 KN
Structure: Four-column Floor Model (Upper Is Compression And Lower Is Tensile)
Control Method: Computer Automatic Control
Load Accuracy: 0.5 Class
Load Range: 0.2%~100% FS (0.40KN~200KN)
Motor: Panasonic Motor, Made In Japan
Sensor: Import Sensor, Made In USA
Resolution: 1/300000
Measuring Range Of Deformation: 2%~100%
Accuracy Indication Of Deformation: ≤±0.5%
Disp. Indicating Relative Error: ≤±1%
Displacement Resolution: 0.04um
Adjusting Range Of Control Rate Of Load: 0.005~5%FS/S
Control Precision Of Control Rate Of Load :
When rate < 0.05% FS/s, the precision is within ± 2% of setting value;
When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.
Adjustment Scope Of Deformation Rate: 0.005~5%FN/S
Accuracy Of Deformation Rate:
Test Speed<0.05%FN/s, within the ±2% of the preset value,
Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.
Adjusting Range Of Displacement Rate: 0.05~200mm/min (Can be customized)
Control Precision Of Displacement Rate:
When rate < 0.5mm/min, within ± 1% of setting value
When rate ≥ 0.5mm/min, within ± 0.5% of setting value
Scope Of The Consistent Load Deformation And Displacement Control: 0.5%~100%FS
Accuracy Of The Consistent Load Deformation And Displacement Control:
Preset value≥10%FN, within the ±0.1% of preset value;
Preset value<10%FN, within the ±1% of preset value.
Tensile Space: 550mm (Can be customized)
Compression Space: 550mm (Can be customized)
Effective Spacing: 600mm (Can be customized)
Load Cell Configuration: One PC (Max Load).
More load cells can be added according to customer requirement.
Extend Configuration:
Large deformation extensometer, high or low temperature test chamber, high temperature oven.
Power Supply: AC 220V±10%, 50Hz (Can be customized)
Grips: Manual Grip / (Optional: Hydraulic Automatic Grip)
Dimension: 1050*700*2421mm
Weight: 1800 KG
