KASUGA NK-7001 Charge plate monitor

Name: KASUGA NK-7001 Charge plate monitor
Brand: KASUGA

ManufacturerKASUGA(View more products from this manufacturer)

ModelNK-7001

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Detection method: Vibration-type static sensor
-Attenuation property
+ Time taken for reduction from 1,000V to 100V
+ Time taken for reduction from 200V to 20V
Display range: ±0.1 - ±1999.9V ; 0.01 - 99.99sec
Analog output: 0 - ±1000.0mV
Measurement precision: Within ±5% + 5 counts
-Power supply:
+4 AA alkaline batteries (15 hours or more of continuous operation)
+ AC100-240V (with AC power supply adapter)
Dimensions: Main unit: 197×100×47mm
Probe: 140×20×25mm
Charge plate: 20 mm × 38 mm (stainless)
Mass: Approx. 600 g (including probe and batteries)
Accessories:
KSD-AC2 / AC power supply adapter (AC100-240V)
KSD-REC / Analog output cable(length: 1,000 mm)

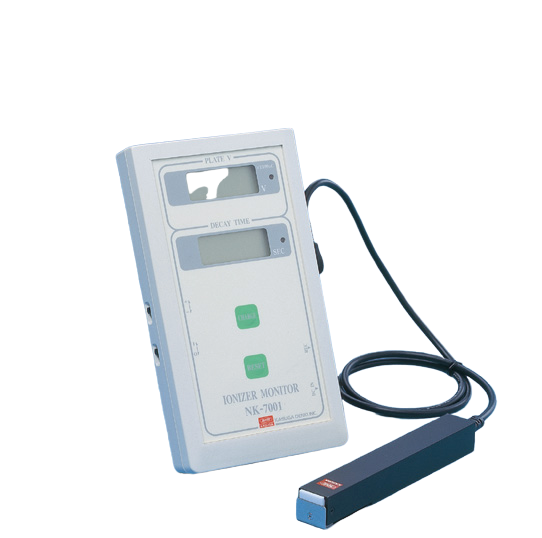

Charge plate monitor (NK-7001)

Electronic devices are becoming less tolerant of static, resulting in the installation of an increasing number of ionizers. Dirt or abrasions on the discharging electrode needle of an ionizer will result in degradation of the ionizer’s static elimination performance or loss of ion balance. Blowing of ions that have lost balance due to such dirt or abrasions is a cause of electrostatic charge for electronic devices, and it could reach a level that leads to destruction of leading-edge devices.
This monitor performs high-precision measurement of static on its charge plate (detector), which has almost the same ground electrostatic capacity as the devices. It is best suited for checking the effect of ionizers at the time of their installation, and their daily management.

Features

The built-in high-voltage power supply device enables evaluation and management of an ionizer just by pressing a button.
The separate small detector probe allows measurement in narrow spaces, such as for evaluating an ionizer installed in a manufacturing device, with the value displayed at the user’s fingertips.
The unit permits evaluation with almost the same size and electrostatic capacity as devices.
Compact and easy-to-handle, this charge plate monitor can easily be brought to the work floor.
Ion-balance evaluation and management with high-resolution measurement are possible at ±0.1V.

Specifications

Model	NK-7001
Detection method	Vibration-type static sensor
Attenuation property	1) Time taken for reduction from 1,000V to 100V 2) Time taken for reduction from 200V to 20V
Display range	±0.1 - ±1999.9V　　　0.01 - 99.99sec
Analog output	0 - ±1000.0mV
Measurement precision	Within ±5% + 5 counts
Operating environment	Temperature: 0°C-40°C,Humidity: 65% RH or below (no condensation)
Power supply	1) 4 AA alkaline batteries (15 hours or more of continuous operation) 2) AC100-240V (with AC power supply adapter)
Dimensions	Main unit: 197×100×47mm Probe: 140×20×25mm Charge plate: 20 mm × 38 mm (stainless)
Mass	Approx. 600 g (including probe and batteries)
Accessories	KSD-AC2 / AC power supply adapter (AC100-240V)
Accessories	KSD-REC / Analog output cable(length: 1,000 mm)
