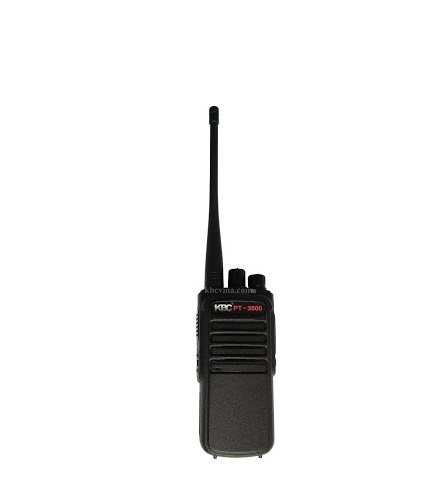

KBC PT-2500/3500 Professional FM Transceiver (8W; 16 CH)

General

Frequency range: UHF 400 ~ 480MHz/ VHF: 136~174 MHz

Frequency stability: ±2.5 ppm

Number of channels: 16 channels

Operating voltage: DC 7.4V

Antenna impedance: 50Ω

Battery: 3500mAh

Channel separation: Wide: 25KHz; Narrow: 12.5KHz

Dimensions: 130x55x36(mm)

Weight: 226g

Emitter

Output power: High: 8W; Low: 1W

Sound Distortion: <5% (300-3000Hz)

Maximum frequency deviation: ± 5Hz

FM noise: <-45dB

Frequency range characteristic: ± 3dB

Radio signal noise: 40 dB

Receiver:

Sensitivity: 0.18uV

Selectivity: 55db

FM noise: 45/40 dB

Noise feedback:> 60 dB

Sound distortion: <5%

Standard current: <20mA

Accessories: Desk charger, Belt clip, Antenna, Battery
