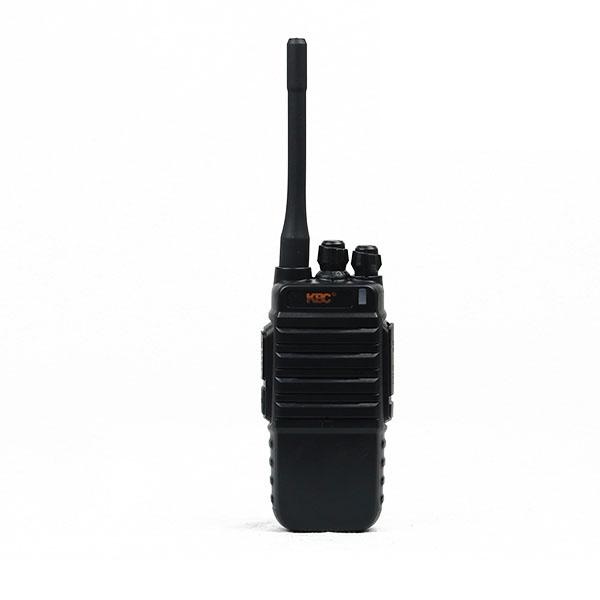

KBC PT-U100 Profestional FM Transceiver (3W; 16CH)

General

Frequency range: UHF 400 ~ 480MHz

Number of channels: 16 channels

Operating voltage: DC 3.7V

Antenna impedance: 50Ω

Channel separation: Wide: 25KHz; Narrow: 12.5KHz

Dimensions: 29x54x118 (mm)

Weight (with battery, antenna): about 155g

Battery: 2100mAh (Li-ion)

Emitter

Output power: 3W

Maximum frequency deviation: <5kHz

Spurious Emission: Below -60 dB

Emission current: 1000mA

Receiver:

Sensitivity: <-126dBm

Sound power: > 500mW

Receiver current: <350mA

Standard current: <20mA

Accessories: Desk charger KBS - 100, Belt clip KBL-100, Antenna KBT-100, Battery KBP-100
