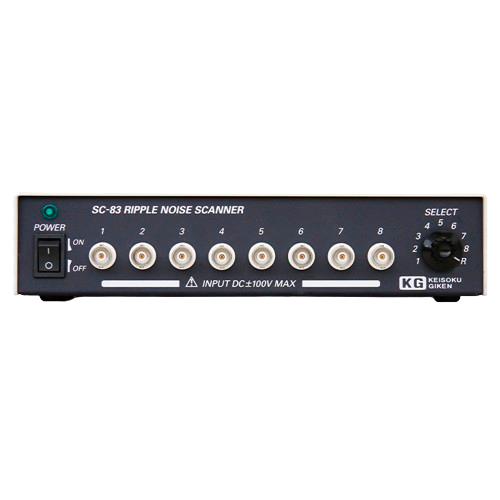

Signal switching section
Number of channels:
8 channels + AUX input
Up to 16 channels (requires connecting one additional SC-83 unit; SCSC-05 cable is required)
Frequency band:
DC to 20 mhz: -1 db (TYP)
DC to 50 mhz: -2 db (TYP)
DC to 100 mhz: -4 db (TYP)
Common mode noise reduction:
DC to 50 mhz: -30 db (TYP)
DC to 100 mhz: -15 db (TYP)
Crosstalk:
DC to 100 mhz: -30 db (TYP)
Cut-off voltage: DC 100 V
Cutting current: 0.5 A
Contact connection method: Break before Make
Signal-to-signal withstand voltage: DC 100 V
Signal and interframe withstand voltage: DC 100 V
Control Unit: Switching method: Manual and external control
Input power:
Number of phases: Single-phase two-wire
Input voltage/ frequency: AC85 V to 264 V / 50 Hz ±3 Hz or 60 Hz ±3 Hz
Input power: 4 VA or less
Mass:
Main unit only: Approximately 1.2 kg
Size: Excluding the protruding part of the interface.: 225(W) x 52(H) x 187(D) mm
Environmental conditions:
Installation environment: indoor use
Operating temperature: 0°C to +40°C
Operating humidity: 20% RH to 85% RH (non-condensing)
Withstand voltage:
Input-FG section: No abnormalities were detected when AC1500V was applied for 1 minute.
Input - Measurement terminal
Insulation resistance:
Input-FG section: DC500 V, 30 MΩ or more
Input - Measurement terminal: DC500 V, 30 MΩ or more
Guidelines for relay replacement:
Electrical life: Approximately 5 million cycles (± 100 V, 60 cycles/minute, ambient temperature 23°C)
Mechanical life: Approximately 100 million times
Relay replacement: User-replaceable
Static electricity: Do not apply static electricity directly to the pins inside the connector.
Features
8-channel input (isolated between channels).
Two units can be linked together to expand to 16 channels.
Frequency bandwidth 100MHz (-4dB).
Remote control is possible from RM-104.
