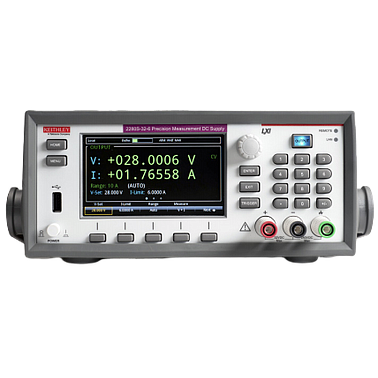

- DC OUTPUT RATINGS:
+ Voltage 0 to 32 V
+ Current 0 to 6 A
+ Maximum Power 192 W
- SOURCE SETTING VOLTAGE:
+ Accuracy ± (0.02% + 3 mV)
+ Resolution 1 mV
- MEASUREMENT VOLTAGE:
+ Accuracy: ± (0.02% + 2 mV)
+ Resolution: 0.1 mV
- REGULATION VOLTAGE:
+ Load ±(0.01% + 2 mV)
+ Line ±(0.01% + 1 mV)
- OUTPUT RIPPLE AND NOISE:
+ Bandwidth 20Hz–20MHz: < 1mVRMS, < 5mV p-p
-CURRENT LIMIT SETTING
+ Full-scale Amps: 6 A
+ Accuracy: ±(0.05% + 5 mA)
+ Resolution: 0.1 mA
-MEASUREMENT CURRENT :
+ Range: 10 mA, 100 mA, 1A, 10 A
+ Resolution: 10 nA, 100 nA, 1 µA, 10 µA
- CURRENT PULSE MEASUREMENT:
+ Minimum Pulse Width (10mA and 100mA range): 6 2.1 ms
+ Minimum Pulse Width (1A and 10A range): 6 140 µs
+ Minimum time to capture two consecutive pulses: 0.5 ms
- REGULATION CURRENT :
+ Load ±(0.01% + 0.25 mA)
+ Line ±(0.01% ± 0.25 mA)
GPIB, USB, and LAN interfaces
POWER SUPPLY: 220V
NET WEIGHT: 10.85kg
