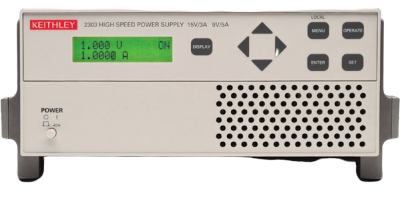

KEITHLEY 2303 DC High Speed Power Supply

- DC VOLTAGE OUTPUT:
+ OUTPUT VOLTAGE: 0 to +15VDC
+ OUTPUT ACCURACY: ±(0.05% + 10mV)
+ PROGRAMMING RESOLUTION: 5mV
+ READBACK ACCURACY: ±(0.05% + 3mV)
+ READBACK RESOLUTION: 1mV
+OUTPUT VOLTAGE SETTLING TIME: 5ms to within stated accuracy
+LOAD REGULATION: 0.01% + 2mV
+LINE REGULATION: 0.5mV
+ STABILITY : 0.01% + 0.5mV
- DC CURRENT
+ OUTPUT CURRENT: 0–9V: 5A max. >9V–15V: 3A max.
+ READBACK ACCURACY:
5A range / ±(0.2% + 400µA)
5mA range / ±(0.2% + 1µA)
READBACK RESOLUTION:
5A range / 100µA
5mA range /0.1µA
- Pulse Current Measurement operation
+ TRIGGER LEVEL
5mA to 5A, in 5mA steps
INPUT POWER: 100V–120VAC/220–240VAC
POWER CONSUMPTION: 150VA max .
