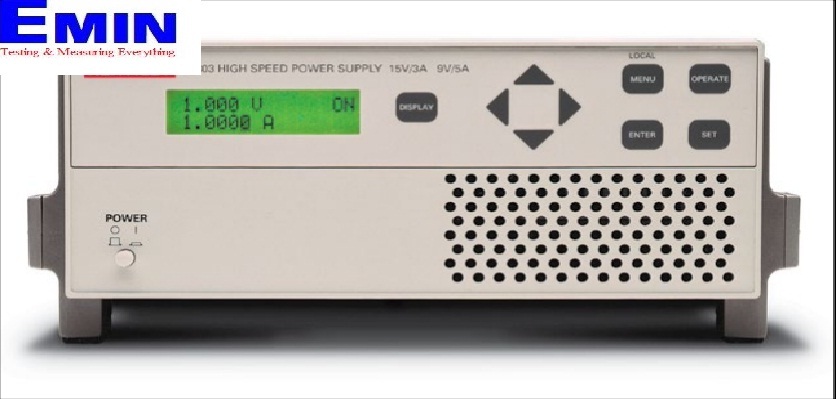

Keithley 2304 DC High Speed Power Supply (20V, 5A, 100W)

Manufaturer: Keithley
Model: 2304
- DC VOLTAGE OUTPUT:
+0 to +20V DC (for Normal Output Response) .
+ 0 to +15V DC (for Enhanced Output Response) .
+ OUTPUT ACCURACY: ±(0.05% + 10mV)
+ PROGRAMMING RESOLUTION: 5mV
+ READBACK ACCURACY: ±(0.05% + 10mV)
+ READBACK RESOLUTION: 1mV
+OUTPUT VOLTAGE SETTLING TIME: 5ms to within stated accuracy
+LOAD REGULATION: 0.01% + 2mV
+LINE REGULATION: 0.5mV
+ STABILITY : 0.01% + 0.5mV
- DC CURRENT
+ OUTPUT CURRENT: 5A max .
+ READBACK ACCURACY:
5A range: ±(0 .2% + 1mA) . 5mA range: ±(0 .2% + 1µA) .
+ READBACK RESOLUTION:
5A range: 100µA . 5mA range: 0 .1µA .
- Pulse Current Measurement operation
+ TRIGGER LEVEL
5mA to 5A, in 5mA steps .
INPUT POWER:100V–240V AC,
POWER CONSUMPTION: 150VA max .
