Voltage Source Specifications
Range;Programming;Accuracy (1 Year);Typical Noise (peak-peak)
Resolution ±(% rdg. + volts) 0.1Hz–10Hz
200 mV 5 µV 0.02% + 375 µV 20 µV
2 V 50 µV 0.02% + 600 µV 50 µV
20 V 500 µV 0.02% + 5 mV 300 µV
200 V 5 mV 0.02% + 50 mV 2mV
Current Source Specifications
Range;Programming;Accuracy (1 Year);Typical Noise (peak-peak)
Resolution ±(% rdg. + volts) 0.1Hz–10Hz
1 nA 2 pA 0.15% + 2 pA 800 fA
10nA 20 pA 0.15% + 5 pA 2 pA
100nA 200 pA 0.06% + 50 pA 5 pA
1µA 20pA 0.03% + 700 pA 25 pA
10µA 200pA 0.03% + 5 nA 60 pA
100 µA 2 nA 0.03% + 60 nA 3 nA
1 mA 20 nA 0.03% + 300 nA 6 nA
10 mA 200 nA 0.03% + 6 µA 200 nA
100 mA 2 µA 0.03% + 30 µA 600 nA
1 A 20 µA 0.05% + 1.8 mA 70 µA
1.5A 50 µA 0.06% + 4 mA 150 µA
10 A 200 µA 0.5% + 40 mA (typical)
Additional Source Specifications
Additional Source Specifcations
Transient Response Time <70 s="" for="" the="" output="" to="" recover="" to="" within="" 0="" 1="" for="" a="" 10="" to="" 90="" step="" change="" in="" load="" br=""> Voltage Source Output Settling Time
Time required to reach within 0.1% of final value after source level command is processed on a fixed range.
Range Settling Time
200 mV <50 s="" typical="" br=""> 2 V <50 s="" typical="" br=""> 20 V <110 s="" typical="" br=""> 200 V <700 s="" typical="" br=""> DC Floating Voltage Output can be floated up to ±250 VDC from chassis ground.
Remote Sense Operating Range 1 Maximum voltage between HI and SENSE HI = 3 V.
Maximum voltage between LO and SENSE LO = 3 V.
Voltage Output Headroom
200 V Range Max. output voltage = 202.3 V – total voltage drop across source leads (maximum 1 Ω per source lead).
20 V Range Max. output voltage = 23.3 V – total voltage drop across source leads (maximum 1 Ω per source lead).
Over Temperature Protection Internally sensed temperature overload puts unit in standby mode.
Voltage Source Range Change Overshoot
<300 mv="" 0="" 1="" of="" larger="" range="" typical="" overshoot="" into="" a="" 200="" k="" load="" 20="" mhz="" bw="" br=""> Current Source Range Change Overshoot
<5% of larger range + 300 mV/Rload (typical with source settling set to SETTLE_SMOOTH_100NA). See
Current Source Output Settling Time for additional test conditions

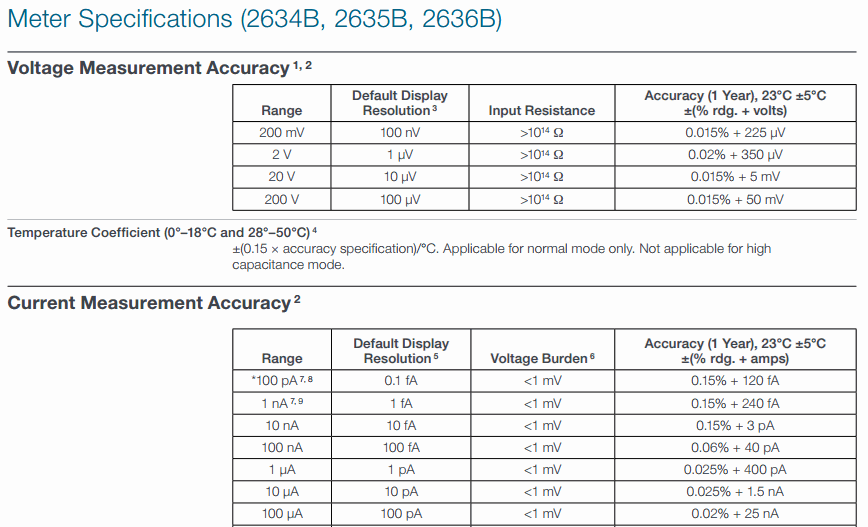

With handle and bumpers: 89 mm × 213 mm × 460 mm
With bumpers and handle: 4.75 kg
