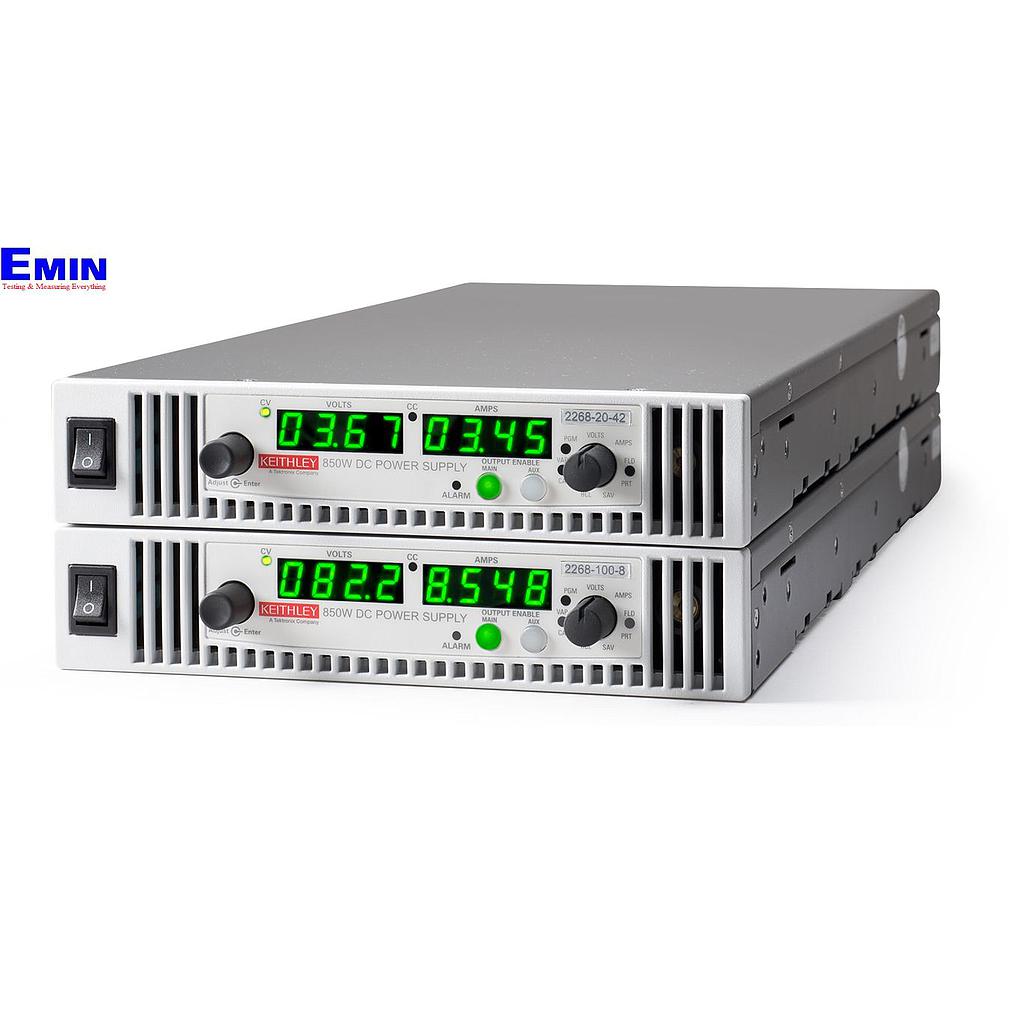

Manufaturer: Keithley - USA
Model: 2268-150-5
Output Voltage: 0-150 V
Maximum Output Current: 5.6 A
Maximum Output Power: 850 W
Line Regulation Voltage: 9.5 mV
Line Regulation Current: 1.6 mA
Load Regulation Voltage: 9.5 mV
Load Regulation Current: 5.1 mA
Output Noise Voltage (RMS, 300kHz) : 10 mV
Output Noise Current (RMS, 300kHz) : 16 mA
Output Ripple (peak‑peak, 20MHz) : 100 mV
Accuracy Voltage Programming: ±150 mV
Accuracy Current Programming: ±11.2 mA
Accuracy Power Programming: ±2.52 W
Accuracy Voltage Readback: ±100 mV
Accuracy Current Readback: ±11.2 mA
Accuracy Power Readback: ±2.52 W
Accuracy Meter Accuracy: 0.5% of output voltage or current ±1 count
DIGITAL INTERFACES: RS‑232,RS‑485,LAN, USB,GPIB
INPUT: 85VAC to 265VAC
DIMENSIONS: 44 mm × 214 mm × 495 mm
WEIGHT: 5 kg
