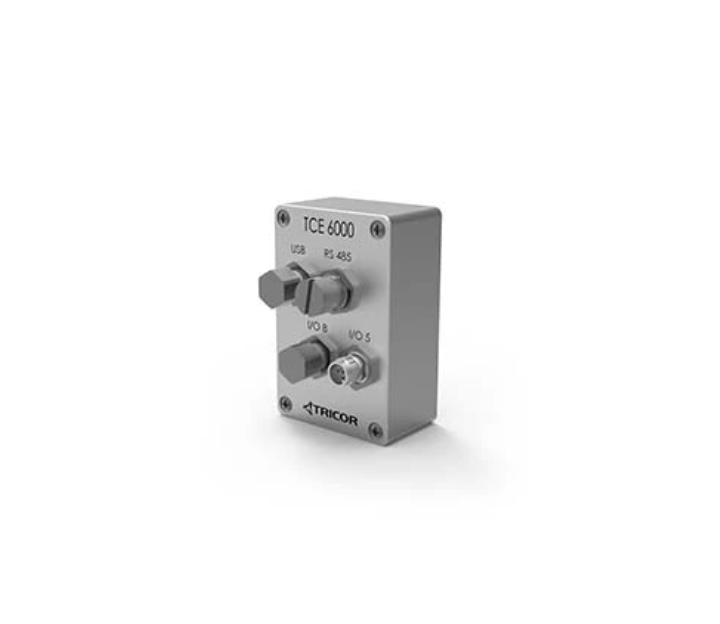

Supply Voltage: 24 V DC
Power Consumption: max. 4 W
Interfaces: RS485, USB (option)
Housing Material: Aluminum
Protection Class: IP65
Programming: via TRD 8001 or via interface
ANALOG OUTPUT
Current Output: 4 ... 20 mA active
Output Value (programmable): flow, total mass, total volume, density, temperature
PULSE OUTPUT
Frequency Range: 0.5 - 10,000 Hz
for ESTA (OPTV receiver): 0.5 - 5,000 Hz
Output Signal: active push-pull output for flow rate
optional:
isolated optical pulse output
STATUS IN- AND OUTPUT
Status Output: push pull programmable (option)
in TOTAL mode: 0.5 - 100 Hz
Control Input (programmable): Standard: 1 input/option: 2 inputs
optional: insulated optical control input
TEMPERATURE
Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F]
Storage and Transport: -40 °C ... +80 °C [-40 °F ... +176 °F]
CONNECTIVITY
Electrical Connections: connectors M12
