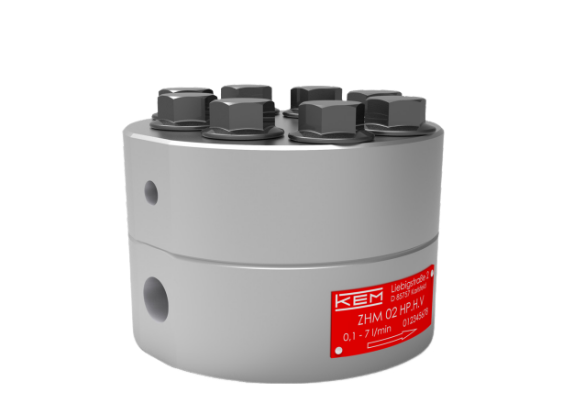

Application : Flow measurement (High Pressure)
Process Medium:
Lubricants, coolant, inhibitors
Abrasive, less lubricating
Medium/high viscosity
Attributes:
Stainless steel body
Stainless steel ball bearing
Tungsten carbide sleeve bearing (optional)
Technical Data – Sizes
Measuring Range(l/min): 0.5 up to 75.0
K-Factor(pulses/l): 475
max. Pressure(bar/psi): 520 [7,500]
Frequency(Hz): 4 up to 560
Weight(kg): 11.1
Technical Data – General
Measuring Accuracy: Up to ±0.1%
Repeatability: ±0.05 % (under the same conditions)
Linearity: ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials
Housing: as per DIN 1.4404 [AISI 316L]
Gears: as per DIN 1.4122, 1.4501 [AISI F55]
Bearing: Stainless steel ball bearing | Tungsten carbide sleeve bearing
Seals: FKM, FFKM
Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)
Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
