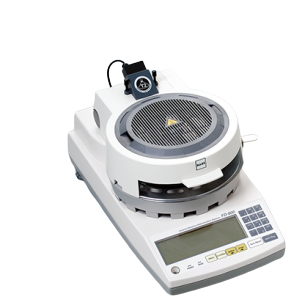

Kett FD800 Infrared Moisture Analyzer

Specifications

Measurement method:Detection of weight loss by heating & drying

Sample mass:0.1-120g (optional weight sampling)

Measurement subject:Moisture / Solid content / Weight

Measurement range:0-100% (wet base, solids); 0-500% (dry base)

Repeatability (standard deviation):

Sample with a weight of 5g or higher : 0.05%

Sample with a weight of 10g or higher : 0.02%)

Resolution:Moisture percentage 0.01% / 0.1%; Weight 1 mg Temperature setting range for thermistor (T1): 30 - 180°C (1°C interval); for radiation thermometer (T2) 30 - 250°C (1°C interval)

Measurement modes:Automatic stop mode, Timer stop mode, Rapid drying mode, Equilibrium drying mode, Step drying mode, Predictive (comparative) measurement mode

External outputRS-232C interface

Environmental conditions:Temperature 5~40°C , Humidity : max of 85%RH Pollution degree 2 , Altitude up to 2000m

Sample dish:SUS (diameter 130 mm, depth 13 mm)

Heat source:Mid-wave infrared quartz heater (200Wx2)

Power source:AC100~120V / 220~240V (50/60Hz)

Power consumption:Max 900W

Dimensions & weight:220(W)x415(D)x190(H), 4.5kg ,

Shipment 310(W)x580(D)x400(H), 10kg

Accessories:Spare sample pan, Aluminum sheets, etc

Options:Printer Set (VZ-330, Printer Cable: VZC-14) 10x Printer paper rolls, 500x Aluminum sheets Radiation thermometer calibration kit GF-200 (digital thermometer, standard heating sample), Data logger software "FDL-02" (RS-232C cable, USB-RS232C conversion cable), Windshield with deodorizer case FW-100

Options:Printer set( Printer VZ-330), Data logger software "FDL-02", Radiation thermometer calibration kit GF-100
