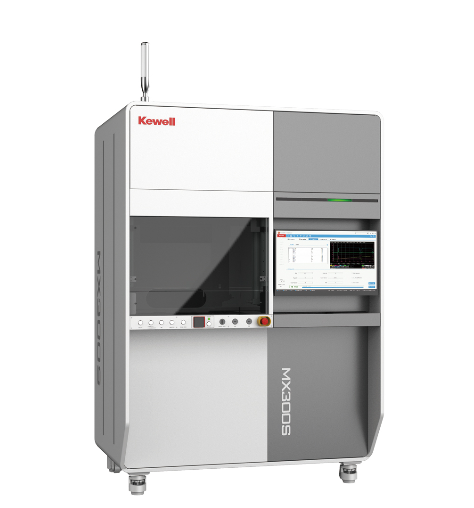

Kewell MX300S-2000-3000 IGBT Static Test System (50~2000V, 50~3000A)

Output:

Voltage range: 50~2000V

Voltage precision: 0.1%FS

Voltage resolution: 0.1V

Current range: 50~3000A

Current precision: 0.1%FS

Current resolution: 1A

Parameters:

Working mode: Laboratory mode/Production mode

Positive & negative gate voltages: 5~±100V

Gate voltage precision: 0.2%

Gate voltage resolution: 0.01V

Substrate temp. range: 25~200℃

Substrate temp. precision: 0.5%FS

Substrate temp. resolution: 0.1℃

Reserved Interface:

Fixture (adapter): Customize according to IGBT models

Communication:

Frequency: 50Hz±5Hz

Human-computer interface: LCD

External communication: LAN

Specifications:

Protection level: IP21 (indoor)

Dimensions: 1300mm (W) ×1850mm (H) × 900mm (D)

Ambient temperature: 25~40℃
