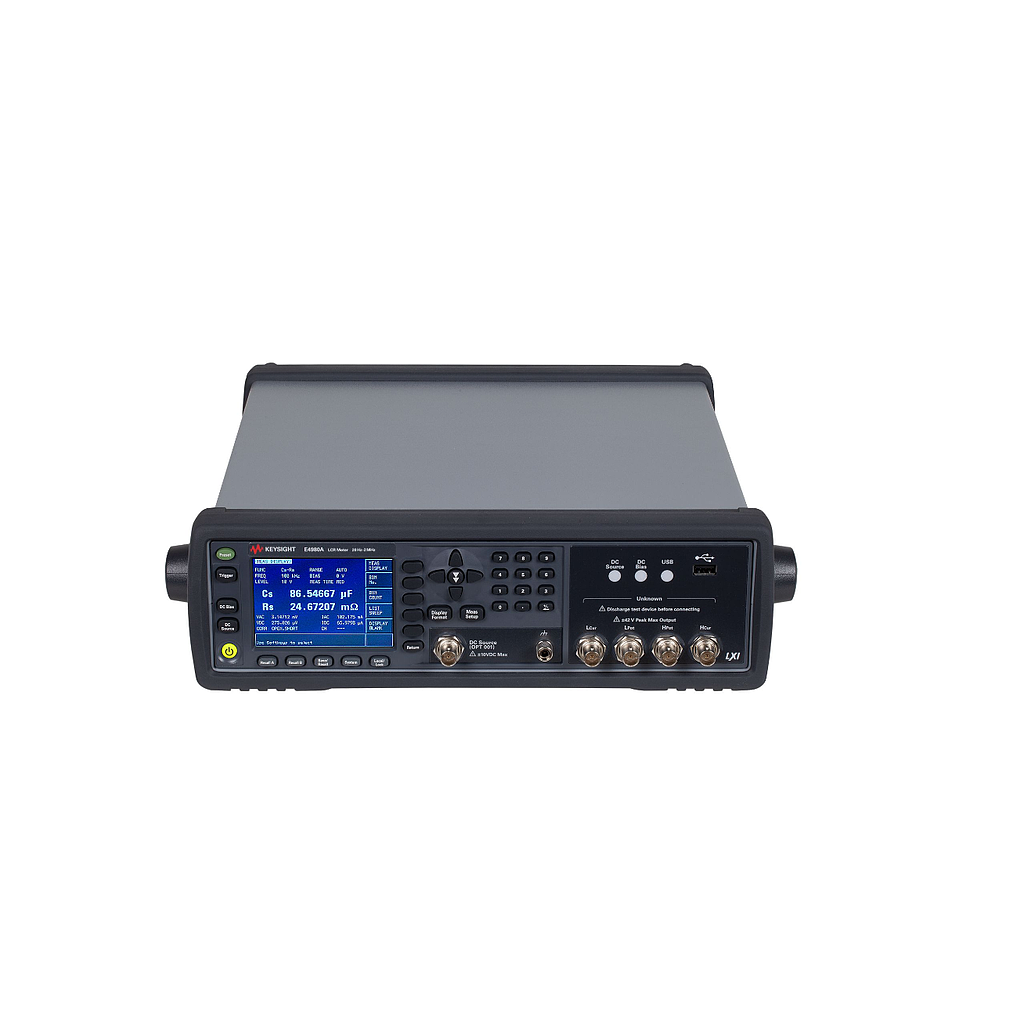

KEYSIGHT E4980A Precision LCR Meter (20 Hz~2 MHz)

Frequency range

20 Hz to 2 MHz

Measurement parameters

• Cp-D, Cp-Q, Cp-G, Cp-Rp

• Cs-D, Cs-Q, Cs-Rs

• Lp-D, Lp-Q, Lp-G, Lp-Rp, Lp-Rdc

• Ls-D, Ls-Q, Ls-Rs, Ls-Rdc

• R-X

• Z-θd, Z-θr

• G-B

• Y- θd, Y-θr

• Vdc-Idc

Signal level

Range: 0 Vrms - 2.0 Vrms

Resolution: 100 µVrms (0 Vrms ≤ - ≤ 0.2 Vrms)

200 µVrms (0.2 Vrms < - ≤ 0.5 Vrms)

500 µVrms (0.5 Vrms < - ≤ 1 Vrms)

1 mVrms (1 Vrms < - ≤ 2 Vrms)
