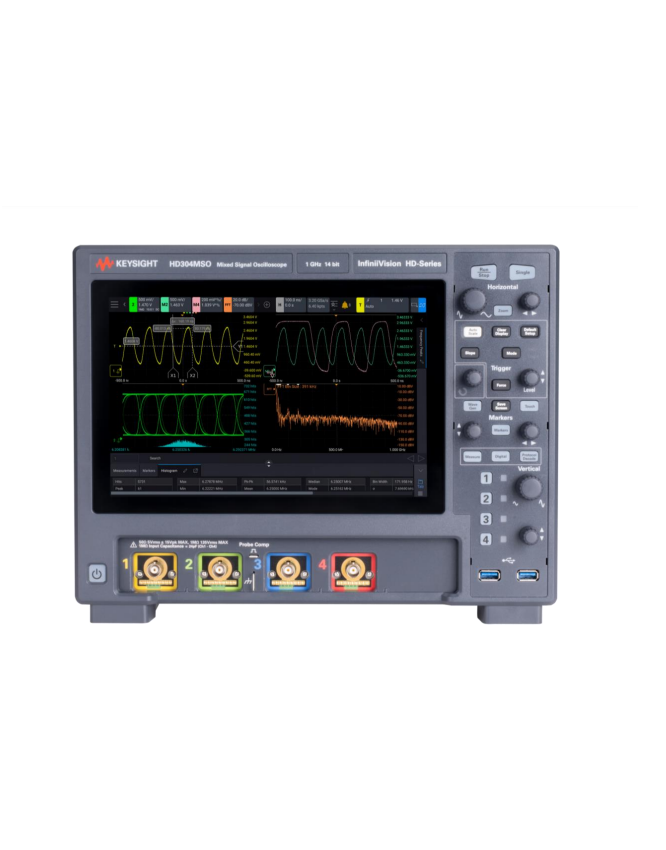

Bandwidth (-3 dB): 200 MHz
Calculated rise time (10 to 90%): ≤ 2.0 ns
Analog Channels: 4
Maximum sample rate: 3.2 GSa/s per channel
Maximum memory depth: 100 Mpts per channel
Display size and type: 10.1-inch capacitive touch gesture-enabled display
Waveform update rate: Uncompromised > 1,300,000 waveforms per second
Vertical system analog channels
Hardware bandwidth limits:
20, 40, 50, 100, 200, 350 MHz (selectable), per-channel
5, 10, 20, 40, 50, 100, 200, 350 MHz (selectable), global
Input coupling: AC, DC
Input impedance:
50 Ω ± 1.5%2
1 MΩ ± 1% ll ~24pF
Input sensitivity range:
50 Ω 500 uV/div to 1 V/div
1 MΩ 500 uV/div to 10 V/div
Vertical resolution: 14 bits (16 bits using bandwidth limits)
DC vertical gain accuracy: ±1.5% full scale3
DC voltage measurement accuracy:
Dual cursor: ± [(DC gain accuracy) + 0.16% full scale]1
Single cursor: ± [(DC gain accuracy) + (offset accuracy) + 0.08% full scale]
DC vertical offset accuracy: ± 0.1 div ± 1 mV ± 1.5% of offset setting
Channel-to-channel isolation: > 100:1 from DC to maximum specified bandwidth of each model
(measured with same V/div and coupling on channels)
Vertical system digital channels
Digital input channels: 16 digital (D0 to D15. pod 1: D3 ~ D0, Pod 2: D7 ~ D4, Pod 3: D11 ~ D8, Pod 4: D15 ~ D12)
Thresholds: Threshold per pod
Threshold selections: TTL (+1.4 V), 5 V CMOS (+2.5 V), ECL (–1.3 V), user-defined (selectable by pod)
User-defined threshold range: ± 8.0 V in 10 mV steps
Maximum input voltage: ± 40 V peak
Threshold accuracy: ± (100 mV + 3% of threshold setting)
Maximum input dynamic range: ± 10 V about threshold
Minimum voltage swing: 500 mVpp
Input impedance: 100 kΩ ± 2% at probe tip
Input capacitance: ~8 pF
Vertical resolution: 1 bit
