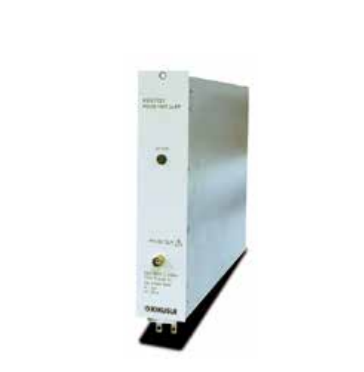

Pulse module 3a/3b: Plug-in type
Peak voltage (Us): ±20 V to ±300 V, in steps of 0.1 V
Output impedance (Ri): 2 Ω, 4 Ω, 10 Ω
Rise time (tr): 1 μs (+0 μs, -0.5 μs)
Pulse width (td): 50 μs ±10 μs at No Load , 40 μs ± 8.0 μs at 4 Ω Load, 12 μs ± 2.4 μs at 2 Ω Load
Repetition interval (t1): 0.2 s to 99 s, in steps of 0.1 s
DC cut time (t2): 1 ms to 100 ms, in steps of 0.1 ms
Surge delay time (t3): Less than 100 μs
Driving power: Supplied from the main frame
Power consumption: -
Dimensions: 50(1.96”)W × 260(10.23”)H × 330(12.99”)D mm
Weight: Approx. 2.5 kg(5.51lbs)
