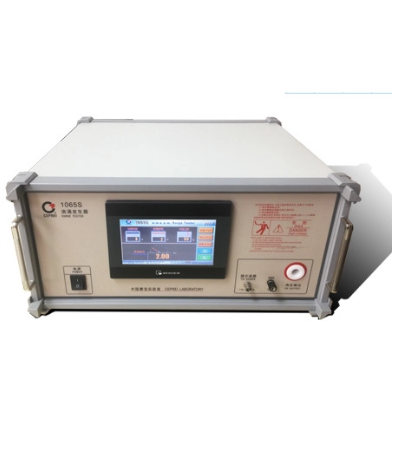

KINGPO 1065S Impulse Test Generator

Output surge voltage: 0 ~ 10kV, resolution 0.01kV, keystroke setting

Digital display accuracy ±5% ±2 words

Charging capacitance: 1nF / 30kV ±5%

Charging time setting range: 1 ~ 999 S

Accuracy ±3%

Discharge time setting range: 1 ~ 999 S

Accuracy ±3 %

Number of tests (charge and discharge): 1 ~ 9999 times

Accuracy ±1 time

Oscilloscope monitoring port output: voltage divider 1 ≤ 1000

Over voltage protection function

Display and operation mode: 7 inch color touch screen (TK6070iH) display and menu interface operation.

High voltage transformer power ≥ 150VA.

Working power supply 220V ± 10%, 50Hz ±2Hz
