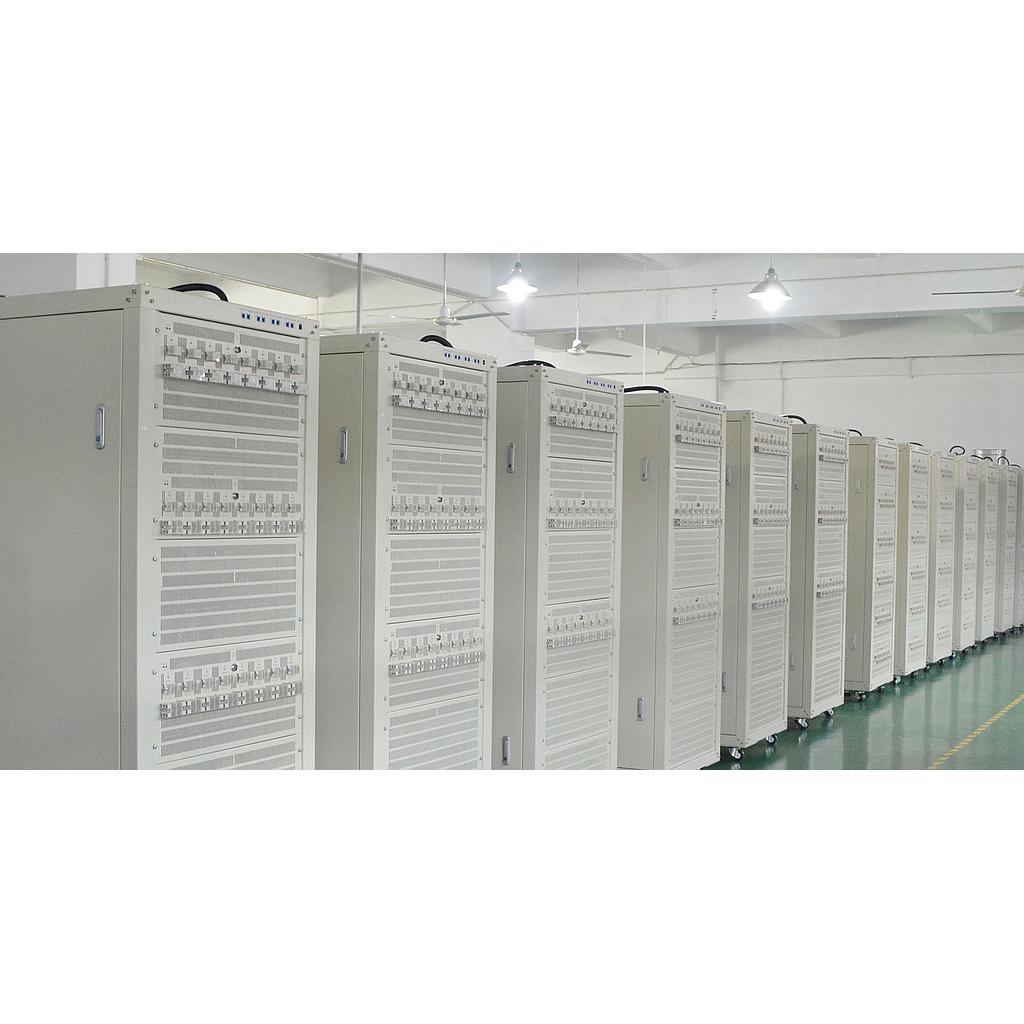

KINGPO BTS-60V5A Battery Testing Machine For Charging, Discharging, Voltage Testing (300W, 60V, 5A)

Input power: AC 380V ±10% / 60Hz

Input active power: 6278 W

Resolution ratio: AD:16bit；DA:16bit

Input impedance: ≥100kΩ

Voltage

Constant voltage range: 0.3V~60V

Minimum discharge voltage: 3V

Accuracy: ± 0.1% of FS

Stability: ± 0.1% of FS

Output range/channel: 0.025A~5A

Accuracy: ± 0.1% of FS

Current

Constant voltage cut-off current: 0.01A

Stability: ± 0.1% of FS

Power
Output range/channel: 300W

Stability: ±0.2% of FS

Time

Current response time: maximum current rising time20ms

Working step time range: ≤(365*24)h/working step

Data record

Record data conditions:

Minimum time interval:100ms

Minimum voltage interval:120mV

Minimum current interval:10mA

Record frequency: 10Hz

Charge
Charge mode: constant-current charge,constant-voltage charge,constant voltage and current charge

Cut-off conditions: Voltage,current,relative time,capacity,-△V

Discharge
Discharge mode: constant current discharge, constant watt discharge

Cut-off conditions: Voltage,current,relative time,capacity,-△V

Impulse mode

Charge: Constant current,Constant power

Discharge: Constant current,Constant power

Minimum impulse width: 500ms

Number of pulses: one single pulse working step can support 32 different pulses

Continuous switch of charge and discharge: one pulse working step can continuously switch from charge to discharge

Cut-off conditions: Voltage,relative time

DCIR test: Support customized picking up point to perform DCIR calculation

Cycle

 Loop test range: 1~65535 times

Single cycle working steps: 254

Loop nest: Nested loop function,max 3 layers

Working temp. range: 0℃~40℃(within25±10℃,ensured accuracy:precision drift0.005% of FS /℃)

Storage temp. range: -10℃~50℃

Working environment relative humidity range: ≤70% RH(no water vapor condensation)

Storage environment relative humidity range: ≤80% RH(no water vapor condensation)

Clamp specification and size

Clamp type: Polymer clamp

Cabinet size/unit(W*D*H)(mm): 30U(24”),730*600*1520
